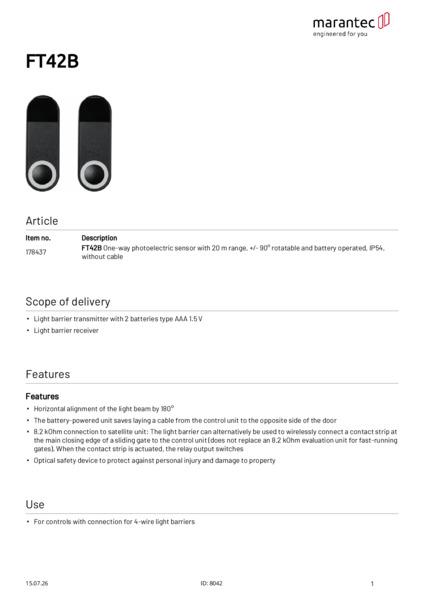

FT42B throughbeam photoelectric sensor with 20 m range, battery-operated

Unsere Parksysteme sind flexibel anpassbar. Sie sind nicht beschränkt auf eine Zufahrt, auch nicht auf die Zufahrtsregelung über Schranken. Sie können zusätzlich mit Rolltoren gesicherte Tiefgaragen ausstatten und verwalten. For controls with connection for 4-wire light barriers
SKU
178437
4062434006542
178501
FT42B throughbeam photoelectric sensor with 20 m range, battery-operated

Scope of delivery:

  • Light barrier transmitter with 2 batteries type AAA 1.5 V
  • Light barrier receiver

Features:

  • Horizontal alignment of the light beam by 180°
  • The battery-powered unit saves laying a cable from the control unit to the opposite side of the door
  • 8.2 kOhm connection to satellite unit: The light barrier can alternatively be used to wirelessly connect a contact strip at the main closing edge of a sliding gate to the control unit (does not replace an 8.2 kOhm evaluation unit for fast running
  • Optical safety device to protect against personal injury and damage to property
FT42B
Product descriptive data
Connection type Conventional
Outputs

1 potential-free relay contact (CO)
Inputs

1 input for transmission of a contact strip or NC contact from the gate leaf
Interfaces 4-wire
Protection class IP54
Application area
Temperature (min./max.) [°C] -20/55
Performance data
Range [m] 20
Range (min./max.) [m] 0/20
Electrical data
Operating voltage [V] 12-24 V-AC 12-35 V-DC
Contact load (max.)

48 V-AC/48 V-DC/0.5 A
Rated current [A] 0.035
Dimensions and weights
Dimensions (WxHxD) [mm] 35x110x35
Technical data
Download PDF Betriebsanleitung-FT42B-DE-EN-IT-2014-04

Filetype: PDF

Language: DE, EN, IT


Published at: Apr 2, 2014 		Preview
