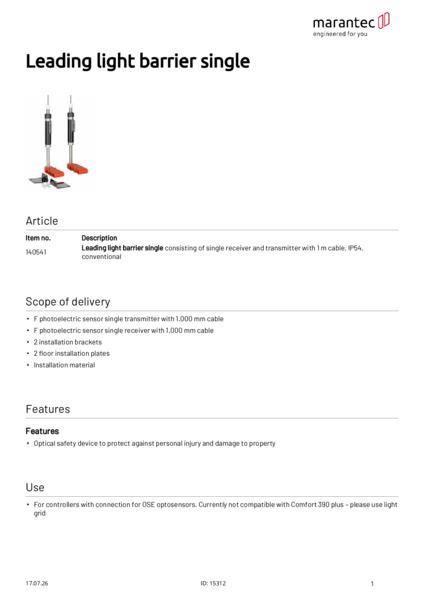

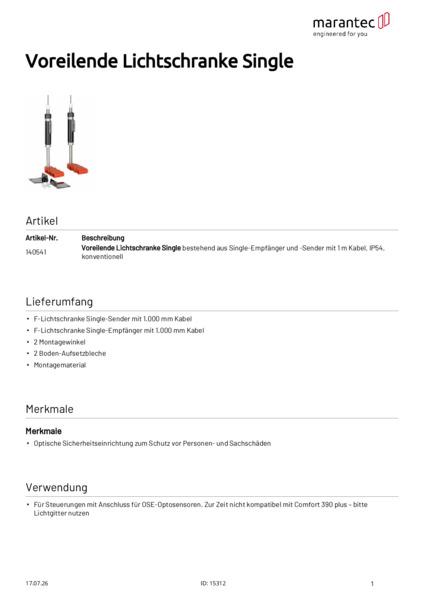

Leading light barrier single
consisting of single receiver and transmitter with 1 m cable, IP54, conventional. For controllers with connection for OSE optosensors. Currently not compatible with Comfort 390 plus – please use light grid.
SKU
140541
Prices are only visible after login.
Leading light barrier single
Scope of delivery:
- F photoelectric sensor single transmitter with 1.000 mm cable
- F photoelectric sensor single receiver with 1,000 mm cable
- 2 installation brackets
- 2 floor installation plates
- Installation material
Features:
- Optical safety device to protect against personal injury and damage to property
Leading light barrier single
Product descriptive data
Connection type
Conventional
Protection class
IP54
Application area
Temperature (min./max.) [°C]
-10/55
Performance data
Range [m]
6
Electrical data
Operating voltage [V]
4-28 V-DC
Power consumption [VA/W/kW]
0.06 W
Dimensions and weights
Dimensions (WxHxD) [mm]
52x331x153
