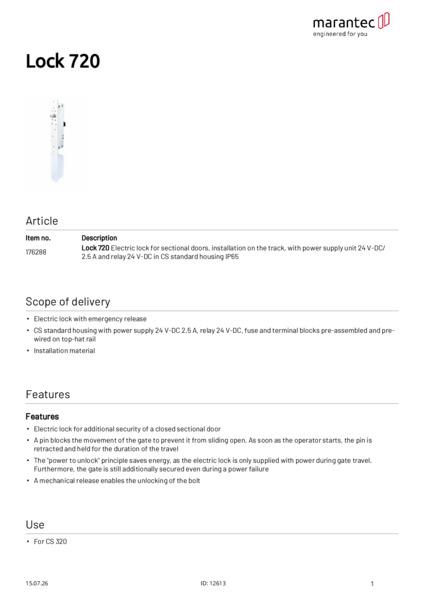

Lock 720 Electric lock for sectional doors, with 24 V-DC/2.5 A power supply unit

Electric lock for sectional doors, installation on the track, with power supply unit 24 V-DC/2.5 A and relay 24 V-DC in CS standard housing IP65. For CS 320.
SKU
176288
4062434014868
Lock 720 Electric lock for sectional doors, with 24 V-DC/2.5 A power supply unit

Scope of delivery:

  • Electric lock with emergency release
  • CS standard housing with power supply 24 V-DC 2.5 A, relay 24 V-DC, fuse and terminal blocks pre-assembled and pre-wired on top-hat rail
  • Installation material

Features:

  • Electric lock for additional security of a closed sectional door
  • A pin blocks the movement of the gate to prevent it from sliding open. As soon as the operator starts, the pin is retracted and held for the duration of the travel
  • The "power to unlock" principle saves energy, as the electric lock is only supplied with power during gate travel. Furthermore, the gate is still additionally secured even during a power failure
  • A mechanical release enables the unlocking of the bolt
Lock 720
Product descriptive data
Protection class IP20
Electrical data
Operating voltage [V] 24 V-DC
Power consumption [VA/W/kW] 29 W
Rated current [A] 0.9
Dimensions and weights
Dimensions (WxHxD) [mm] 28x205x65
