MILAN active infrared sensor, 2.5-6.0 m mounting height, with 10 m cable

Active infrared presence sensor, 2.5 to 6.0 m installation height, IP65 with 10 m cable. For all Marantec controls and third-party products.

SKU

148763

EAN Code

4062434013724

Quantity

PAU

Quantity

MILAN active infrared sensor, 2.5-6.0 m mounting height, with 10 m cable

Scope of delivery:

Features:

Contactless protection of gate, persons or objects by presence detection in the entrance of the gate
Customizable detection field and minimum size of objects to be detected

MILAN

Product descriptive data

Connection type Conventional

Outputs

2 potential-free relay contacts (CO)

Color Black

Contact type 2 CO

Protection class IP65

Sensoren Active infrared

Wave length [nm] 875

Application area

Installation height (min./max.) [m] 2.5/6

Temperature (min./max.) [°C] -30/60

Performance data

Active infrared detection field (max. WxL) [m] 4x4

Electrical data

Operating voltage [V] 12-24 V-AC 12-24 V-DC

Operating voltage type Alternating current or direct current

Power consumption [VA/W/kW] 3.5 W

Contact load (max.)

42 VA/30 W

Dimensions and weights

Dimensions (WxHxD) [mm] 127x102x96

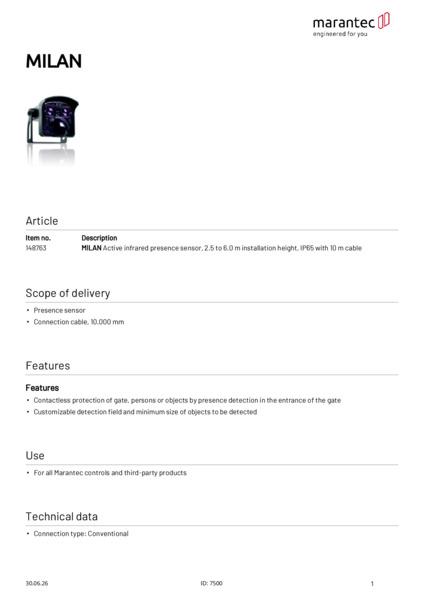

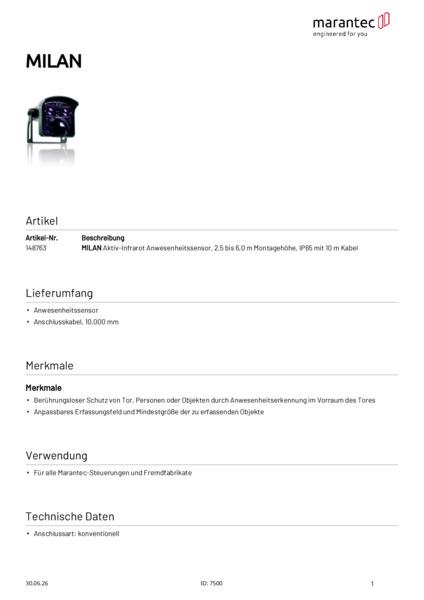

Technical data
		Betriebsanleitung-MILAN-DE-2020-07 Filetype: PDF Language: DE Published at: Jul 1, 2020
		Betriebsanleitung-MILAN-EN-2020-07 Filetype: PDF Language: EN Published at: Jul 1, 2020
		Betriebsanleitung-MILAN-ES-2020-07 Filetype: PDF Language: ES Published at: Jul 1, 2020
		Betriebsanleitung-MILAN-FR-2020-07 Filetype: PDF Language: FR Published at: Jul 1, 2020
		Betriebsanleitung-MILAN-IT-2020-07 Filetype: PDF Language: IT Published at: Jul 1, 2020
		Betriebsanleitung-MILAN-NL-2020-07 Filetype: PDF Language: NL Published at: Jul 1, 2020
		Betriebsanleitung-MILAN-RU-2020-07 Filetype: PDF Language: RU Published at: Jul 1, 2020
