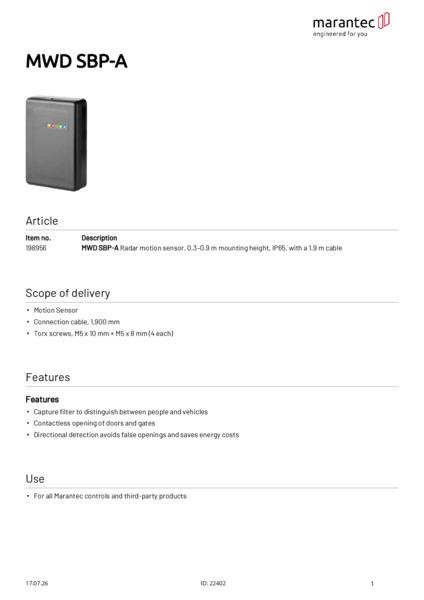

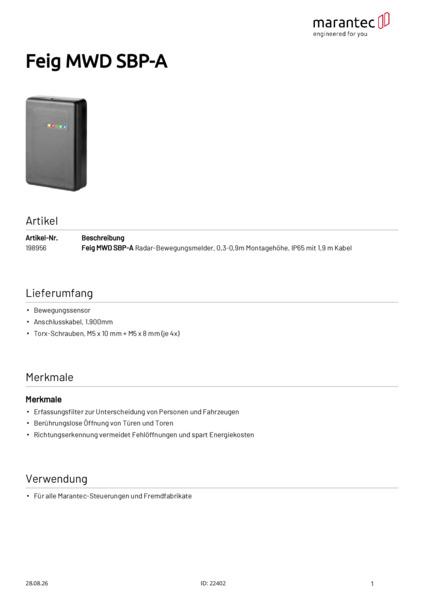

MWD SBP-A Radar motion sensor, 0.3–0.9 m mounting height, IP65 with 1.9 m cable
Radar motion sensor, 0.3–0.9 m mounting height, IP65, with a 1.9 m cable. For all Marantec controls and third-party products.
SKU
198956
EAN Code
4062434027264
Prices are only visible after login.
MWD SBP-A Radar motion sensor, 0.3–0.9 m mounting height, IP65 with 1.9 m cable
Scope of delivery:
Motion Sensor
Connection cable, 1,900 mm
Torx screws, M5 x 10 mm + M5 x 8 mm (4 each)
Features:
- Capture filter to distinguish between people and vehicles
- Contactless opening of doors and gates
- Directional detection avoids false openings and saves energy costs
MWD SBP-A
Product descriptive data
Connection type
Conventional
Outputs
3x MOSFET relays, max. 30 V DC, 20 V AC, 100 mA,
Inputs
- 1 digital input
- Optionally switches high-side (9–30 V DC) or low-side (GND)
Color
Black
Radio frequency
60 GHz
Contact type
3 NO
Protection class
IP65
Sensoren
Radar (FMCW)
Application area
Installation height (min./max.) [m]
0.3/0.9
Temperature (min./max.) [°C]
-30/55
Performance data
Range [m]
8
Detection field radar (WxL max.) [m]
8x8
Electrical data
Operating voltage [V]
9-30 V-DC
Operating voltage type
Direct current
Power consumption [VA/W/kW]
1.8 W
Contact load (max.)
30 V DC / 20 V AC
Dimensions and weights
Dimensions (WxHxD) [mm]
63.6x93.6x21.7
