Parc PA4 barrier arms up to 5 m, 24 V DC motor, 2,500 cycles per day
-
.1699175895.png)
Speditionsartikel
Unsere Parksysteme sind flexibel anpassbar. Sie sind nicht beschränkt auf eine Zufahrt, auch nicht auf die Zufahrtsregelung über Schranken. Sie können zusätzlich mit Rolltoren gesicherte Tiefgaragen ausstatten und verwalten..
SKU
191497
4062434019535
178414
Item is not available
Note
Product added to cart.
Loading...

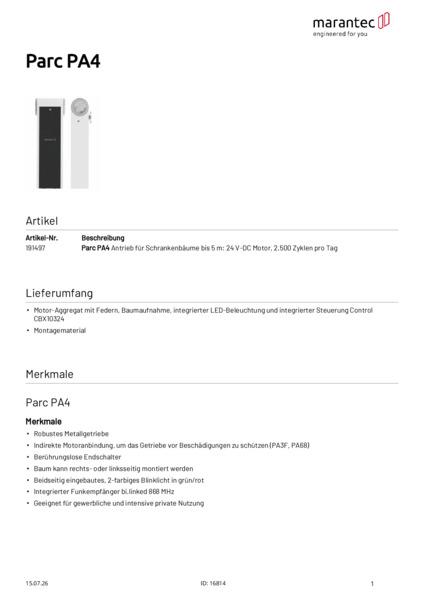

Parc PA4 barrier arms up to 5 m, 24 V DC motor, 2,500 cycles per day
Scope of delivery:
- Motor unit with springs, tree support, integrated LED lighting and integrated Control CBX10324 control unit
- Mounting material
Operator – Features:
- Robust metal gearbox
- Indirect motor connection to protect the gearbox from damage (PA3F, PA68)
- Non-contact limit switches
- Boom can be mounted on the right or left side
- 2-color flashing light in green/red installed on both sides
- Integrated radio receiver bi-linked 868 MHz
- Suitable for commercial and intensive private use
Control – Functions:
- Current-dependent obstacle detection with reversal
- Soft start/soft stop/soft run
- Automatic feed function
- Gate open time and prewarning time separately programmable
- Lighting duration programmable and switchable by radio
- Partial opening programmable
- Running speed OPEN and CLOSE separately programmable
- Soft run position OPEN and CLOSE separately programmable
- Soft run speed OPEN and CLOSE separately programmable
- Cycle counter
- Maintenance interval programmable
- Error signaling
- Simple reset function (complete reset)
Control – Operation:
- Same programming logic for all controls - CBX102B, CBX10224 and CBX20224
- 2 menus: simple and advanced - for easy programming but customizable installation
- Programming and status indication via LED display
Control – Structure and connection:
- Integrated radio receiver bi-linked 868 MHz
- Connection (conventional) for pushbutton
- Connection (conventional) for 4-wire photoelectric sensor OPEN and CLOSED
- Connection (conventional) for holding circuit
- Connection (conventional) for 8.2 kOhm contact strip
- Connection (conventional) for 24 V-DC signal lamp
- Connection (conventional) for 12 V-AC electric lock
- Connection for battery backup
- Output 24 V-DC, max. 250 mA
Parc PA4
Product descriptive data
Connection type
Conventional
Continuous sound pressure level (max.) [dB(A)]
70
Encoder
Yes
Protection class
IP54
Application area
Beam length (max.) [m]
5
Temperature (min./max.) [°C]
-20/55
Performance data
Output torque [Nm]
200
Operating mode (duty cycle)
S2 - 8 min
Cycles per day (max.)
2,500
Motor power [kW]
0.04
Opening time (min.) [s]
3.5
Electrical data
Operating voltage [V]
24 V-DC
Operating voltage type
Direct current
Motor voltage [V]
24 V-DC
Dimensions and weights
Weight [kg]
47
Dimensions (WxHxD) [mm]
220x1,110x360
CBX
Product descriptive data
Radio frequency
868 MHz
Radio technology
bi.linked
Protection class
IP00
Protection class
I
Application area
Temperature (min./max.) [°C]
-20/55
Electrical data
On-site supply
230 V/1~/50 Hz 230 V/1~/60 Hz
Load capacity Power (max.) [kW]
0.15
Motor voltage [V]
24 V-DC
Control voltage [V]
24 V-DC
Dimensions and weights
Dimensions (WxHxD) [mm]
130x100x95
