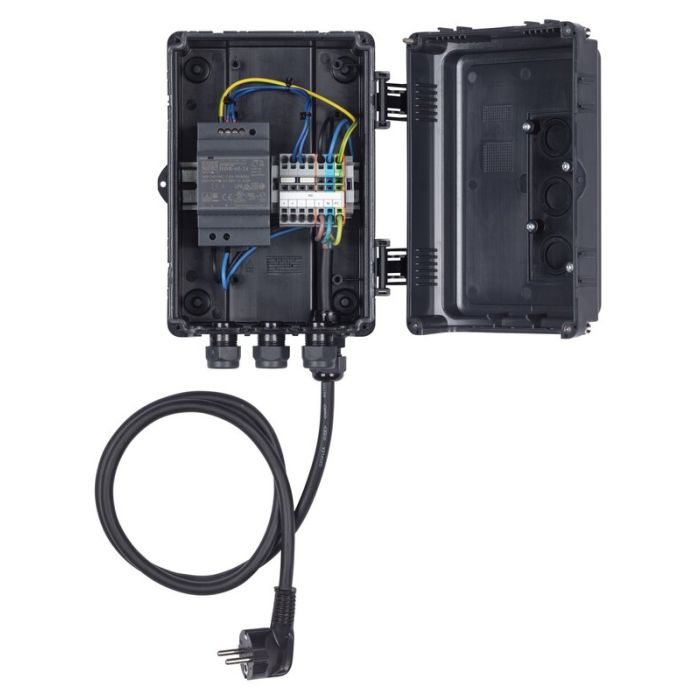

24 V DC/2.5 A power supply unit with 2 outputs in CS mini housing, 1.5 m cable

2 outputs, in CS mini housing, IP65, with 1.5 m cable and Schuko plug. For all Marantec controllers and third-party products.
SKU
184828
4062434014561
24 V DC/2.5 A power supply unit with 2 outputs in CS mini housing, 1.5 m cable

Scope of delivery:

  • Power supply unit pre-assembled in CS mini housing and pre-wired with 1,500 mm connection cable

Features:

  • Wide universal input voltage range
  • Adjustable output voltage
  • Connections protected against accidental contact
  • Weather resistant housing
Power supply 24 V-DC/2.5 A in CS mini housing
Product descriptive data
Connection type Conventional
Outputs

2
Inputs

1
Protection class IP65
Application area
Temperature (min./max.) [°C] -30/70
Performance data
Output power [kW] 0.06
Electrical data
Output voltage [V] 24 V-DC
Output current [A] 2.5
Input voltage [V] 85-264 V/1~
Power consumption [VA/W/kW] 66.7 W
Nominal frequency [Hz] 50/60
Dimensions and weights
Dimensions (WxHxD) [mm] 165x220x105

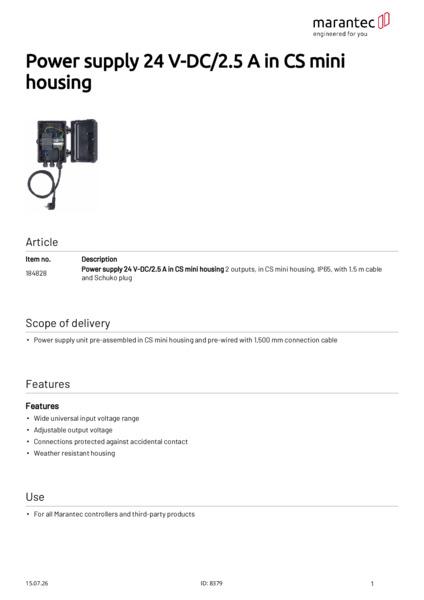

Technical data
Download PDF Betriebsanleitung-HDR-30-HDR-60-EN-2022-06

Filetype: PDF

Language: EN


Published at: Jun 28, 2022 		Preview
