Reflex light barrier 24 V-AC/DC, 10 m range, 4-wire, without cable

Unsere Parksysteme sind flexibel anpassbar. Sie sind nicht beschränkt auf eine Zufahrt, auch nicht auf die Zufahrtsregelung über Schranken. Sie können zusätzlich mit Rolltoren gesicherte Tiefgaragen ausstatten und verwalten. For controls with connection for 4-wire light barriers
SKU
90747
4062435001522
Reflex light barrier 24 V-AC/DC, 10 m range, 4-wire, without cable

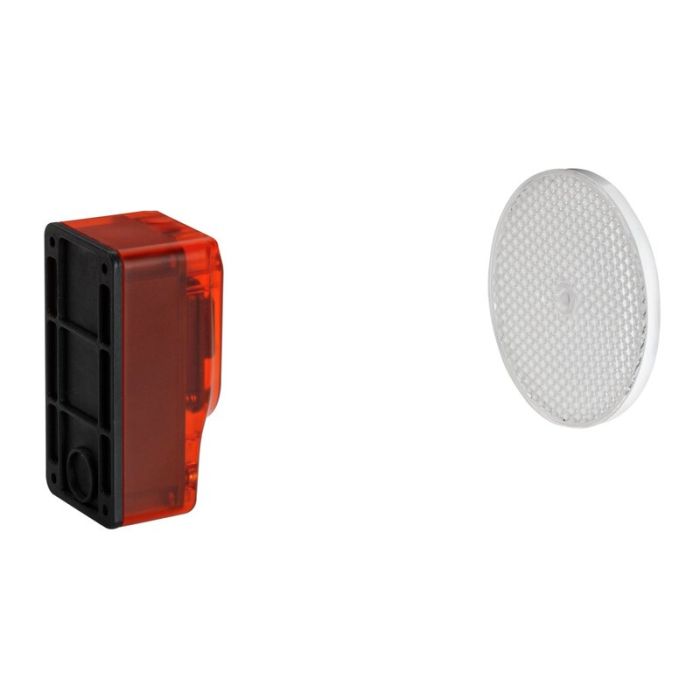

Scope of delivery:

  • Light barrier transmitter/receiver
  • Reflector 80 mm

Features:

  • The reflector saves the laying of a cable from the control to the opposite side of the gate
  • Optical safety device to protect against personal injury and damage to property
Reflex light barrier 24 V-AC/DC
Product descriptive data
Connection type Conventional
Outputs

1 potential-free relay contact (NC)
Inputs

1 Test input
Interfaces 4-wire
Protection class IP65
Application area
Temperature (min./max.) [°C] -25/60
Performance data
Range [m] 12
Range (min./max.) [m] 1/12
Electrical data
Operating voltage [V] 12-36 V-AC/-DC
Contact load (max.)

0.5 A/48 V-DC, 0.6 A/50 V-AC
Rated current [A] 0.03
Dimensions and weights
Weight [kg] 0.15
Dimensions (WxHxD) [mm] 45x87x40
Technical data
Download PDF Betriebsanleitung-LS-6P-DE-EN-2013-01

Filetype: PDF

Language: DE, EN


Published at: Jan 23, 2013 		Preview
