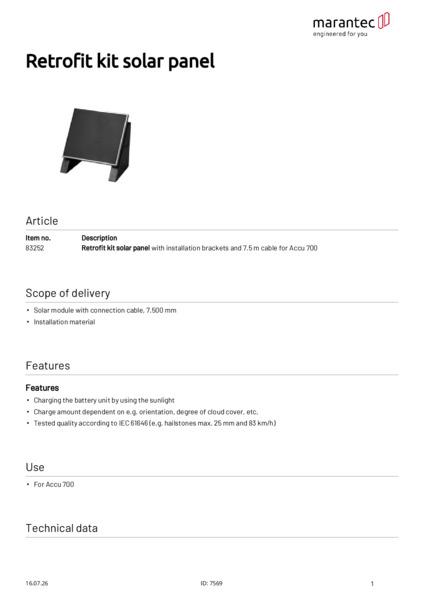

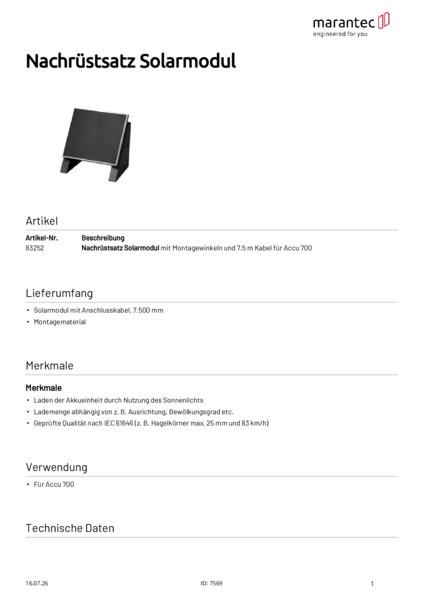

Solar module with mounting brackets and 7.5 m cable for Accu 700

with installation brackets and 7.5 m cable for Accu 700 For Accu 700
SKU
83252
4062434007518
Solar module with mounting brackets and 7.5 m cable for Accu 700

Scope of delivery:

  • Solar module with connection cable, 7.500 mm
  • Installation material

Features:

  • Charging the battery unit by using the sunlight
  • Charge quantity dependent on e.g. orientation, degree of cloud cover, etc.
  • Tested quality according to IEC 61646 (e.g. hailstones max. 25 mm and 83 km/h)
Retrofit kit solar panel
Product descriptive data
Connection type Pluggable
Outputs

1 output for supplying the operator system
Protection class IP65
Application area
Temperature (min./max.) [°C] -20/60
Electrical data
Operating voltage [V] 36 V-DC
Operating voltage type Direct current
Charging current (max.) [A] 0.55
Dimensions and weights
Dimensions (WxHxD) [mm] 430x400x80
Marantec Marienfeld GmbH & Co. KG
Remser Brook 11
33428 Marienfeld
