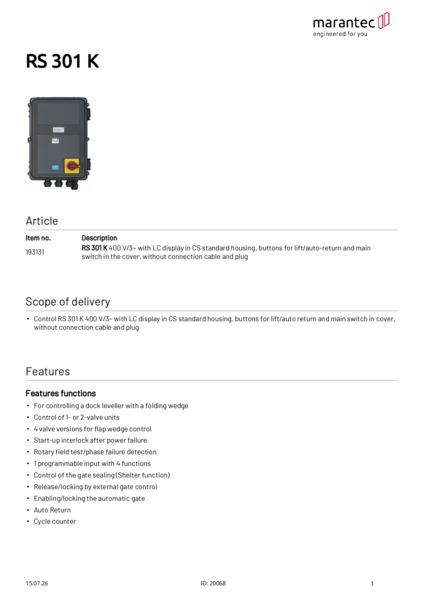

RS 301 K Ramp control for folding wedge bridges

400 V/3~ with LC display in CS standard housing, buttons for lift/auto-return and main switch in the cover, without connection cable and plug.
SKU
193131
4062435001997
RS 301 K Ramp control for folding wedge bridges

Scope of delivery:

  • Control RS 301 K 400 V/3~ with LC display in CS standard housing, buttons for lift/auto return and main switch in cover, without connection cable and plug

Functions:

  • For controlling a dock leveller with a folding wedge
  • Control of 1- or 2-valve units
  • 4 Ventilversionen für Klappkeilansteuerung
  • Start-up interlock after power failure
  • Rotary field test/phase failure detection
  • 1 programmable input with 4 functions
  • Control of the gate sealing (shelter function)
  • Release/locking by external gate control
  • Enabling/locking the automatic gate
  • Auto Return
  • Cycle counter

Operation:

  • 1 Direction key
  • Auto return button
  • Pluggable LC display with plain text display
  • Status and diagnostic messages

Structure and connection:

  • Integrated main switch
  • Integrated fuses for the hydraulic power unit (standard: 4 A, on request 6.3 A)
  • Short-circuit proof extra-low voltage
  • Supply for external devices (24 V-DC/2,500 mA)
  • Connection of indoor and outdoor traffic lights
  • Connection of wheel wedge and start-up sensor
  • Connection of loading light or signal horn
  • Connection for emergency stop
  • Connection for locking the dock leveller
  • Connection for locking the gate system
  • All connections are pluggable
  • Low case bottom
  • Integrated cover hinges
  • Adjustable, preassembled wall brackets
  • Cable tunnel for connecting lines
RS 301 K
Product descriptive data
Housing type CS Standard
Protection class IP65
Display type LCD
Main switch in the control cover Main switch 4-pole
Pushbutton in the control cover Lift Auto Return
Emergency stop in the control cover Without emergency stop
Function switch in the control cover Without function switch
Power plug Without power plug
Application area
Temperature (min./max.) [°C] -10/55
Performance data
Operating mode (control) Deadman
Electrical data
Output current [A] 6.3
On-site fuse protection (mains operation 230 V /1~) [A] 10
On-site supply 180-440 V/3~/N/PE/50/60 Hz
Load capacity Power (max.) [kW] 2.2
Switching current (max.) [A] 6.3
Current consumption per valve (max.) [A] 0.6
Mains frequency [Hz] 50/60
Control voltage [V] 24 V-DC
Dimensions and weights
Weight [kg] 0.0025
Dimensions (WxHxD) [mm] 215x275x190
