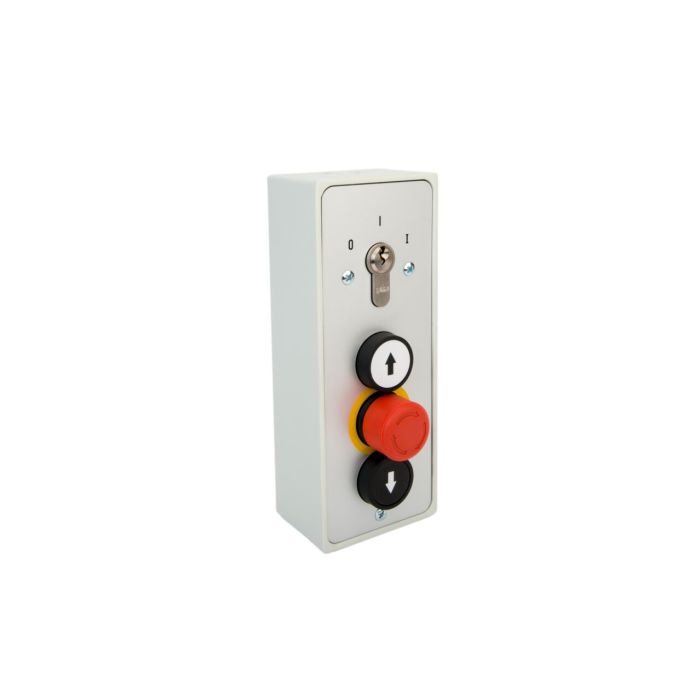

S-APZ 4-1R/2N Key switch surface-mounted 1-sided momentary/latching with 3-fold push-button OPEN/Emergency/CLOSE

Key switch for surface installation, 1-sided momentary or latching, 3-series push button OPEN/emergency mushroom head/CLOSED, metal housing, IP54, 3 keys For all Marantec controls and third-party products
SKU
141677
S-APZ 4-1R/2N Key switch surface-mounted 1-sided momentary/latching with 3-fold push-button OPEN/Emergency/CLOSE

Scope of delivery:

  • Key switch with profile half cylinder (30/10 mm - 0°) and 3 keys
S-APZ 4-1R/2N
Product descriptive data
Connection type Conventional
Number of contacts 5
Contact type 2 CO + 2 NO + 1 NC
Material Aluminum die casting Stainless steel (V2A)
Switch function 1-sided latching
Protection class IP54
Application area
Installationarea Surface mount
Dimensions and weights
Weight [kg] 1.01
Dimensions (WxHxD) [mm] 75x192x52
