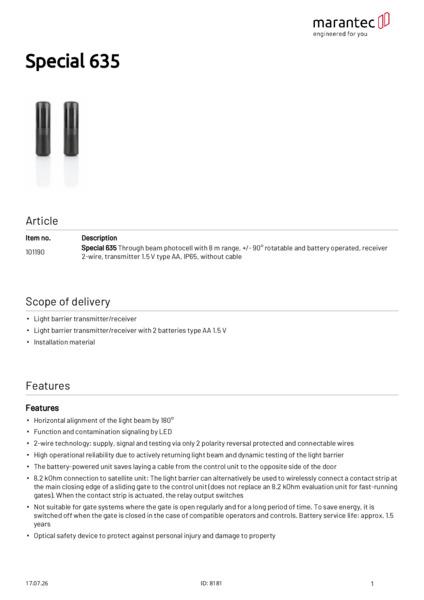

Special 635 throughbeam photoelectric sensor with 8 m range, battery-operated

Through beam photocell with 8 m range, +/- 90° rotatable and battery operated, receiver 2-wire, transmitter 1.5 V type AA, IP65, without cable. For controls with connection for 2-wire light barriers.
SKU
101190
4062434001158
Special 635 throughbeam photoelectric sensor with 8 m range, battery-operated

Scope of delivery:

  • Light barrier transmitter/receiver
  • Light barrier transmitter/receiver with 2 batteries type AA 1.5 V
  • Installation material

Features:

  • Horizontal alignment of the light beam by 180°
  • Function and contamination signaling by LED
  • 2-wire technology: supply, signal and testing via only 2 polarity reversal protected and connectable wires
  • High operational reliability due to actively returning light beam and dynamic testing of the light barrier
  • The battery-powered unit saves laying a cable from the control unit to the opposite side of the door
  • 8.2 kOhm connection to satellite unit: The light barrier can alternatively be used to wirelessly connect a contact strip at the main closing edge of a sliding gate to the control unit (does not replace an 8.2 kOhm evaluation unit for fast running
  • Not suitable for gate systems where the gate is open regularly and for a long period of time. To save energy, it is switched off when the gate is closed in the case of compatible operators and controls. Battery service life: approx. 1.5 years
  • Optical safety device to protect against personal injury and damage to property
Special 635
Product descriptive data
Connection type Conventional
Interfaces 2-wire
Protection class IP65
Performance data
Range [m] 8
Range (min./max.) [m] 1/8
Electrical data
Operating voltage [V] 24 V-DC
Dimensions and weights
Dimensions (WxHxD) [mm] 47x160x46
