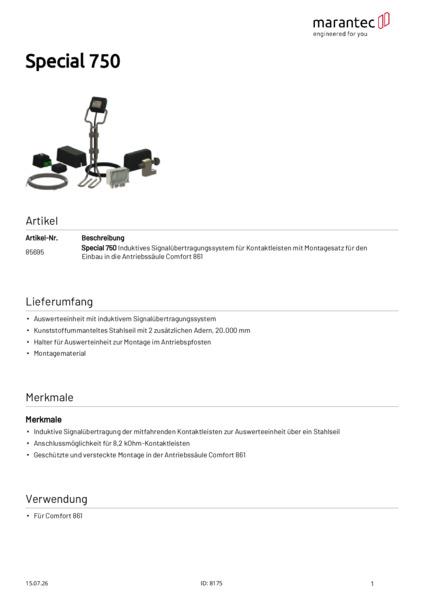

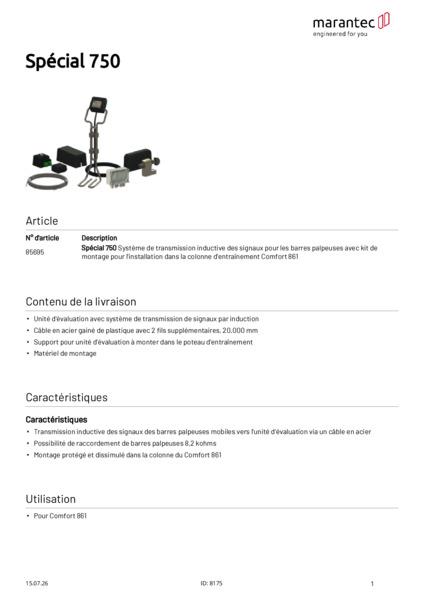

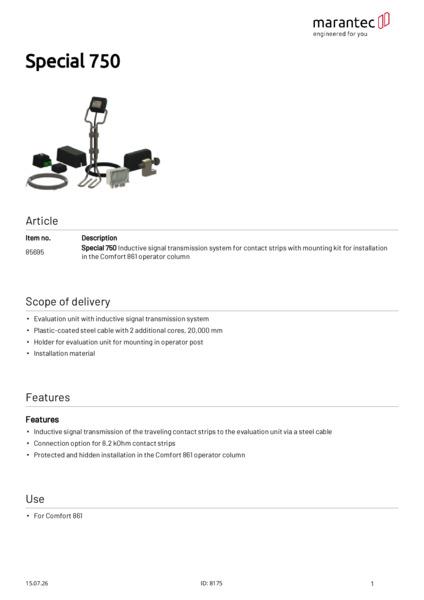

Special 750 Inductive signal transmission system for contact strips
Inductive signal transmission system for contact strips with mounting kit for installation in the Comfort 861 operator column For Comfort 861
SKU
85695
4062434007310
Item is not available
Note
Product added to cart.
Loading...
Special 750 Inductive signal transmission system for contact strips
Scope of delivery:
- Evaluation unit with inductive signal transmission system
- Plastic-coated steel cable with 2 additional cores, 20,000 mm
- Holder for evaluation unit for mounting in operator post
- Installation material
Features:
- Inductive signal transmission of the traveling contact strips to the evaluation unit via a steel cable
- Connection option for 8.2 kOhm contact strips
- Protected and hidden mounting in the Comfort 861 operator column
Special 750
Product descriptive data
Connection type
Conventional
Number of contacts
2
Outputs
2 potential-free relay contacts (NC)
Inputs
4 inputs with resistance evaluation 8.2 kOhm for moving and fixed contact strips in OPEN and CLOSE direction
Contact type
2 NC
Protection class
IP65
Application area
Temperature (min./max.) [°C]
-20/55
Electrical data
Operating voltage [V]
230 V/1~ 24 V-AC 24 V-DC
Power consumption [VA/W/kW]
3 VA
Contact load (max.)
30 V-AC/24 V-DC/2 A
Dimensions and weights
Weight [kg]
0.46
