Special 751 Inductive signal transmission system for contact strips

Inductive signal transmission system for contact strips. For all Marantec sliding gate operators (except Comfort 861) and third-party products.
SKU
85696
4062434007303
Special 751 Inductive signal transmission system for contact strips

Scope of delivery:

  • Evaluation unit with inductive signal transmission system
  • Plastic-coated steel cable with 2 additional cores, 20,000 mm
  • Holder for evaluation unit for mounting on foundation
  • Installation material

Features:

  • Inductive signal transmission of the traveling contact strips to the evaluation unit via a steel cable
  • Connection option for 8.2 kOhm contact strips
Special 751
Product descriptive data
Connection type Conventional
Number of contacts 2
Outputs

2 potential-free relay contacts (NC)
Inputs

4 inputs with resistance evaluation 8.2 kOhm for moving and fixed contact strips in OPEN and CLOSE direction
Contact type 2 NC
Protection class IP65
Application area
Temperature (min./max.) [°C] -20/55
Electrical data
Operating voltage [V] 230 V/1~ 24 V-AC 24 V-DC
Power consumption [VA/W/kW] 3 VA
Contact load (max.)

30 V-AC/24 V-DC/2 A
Dimensions and weights
Weight [kg] 0.46
Technical data

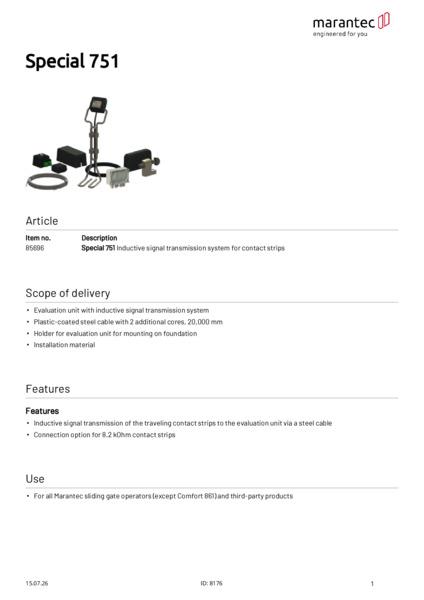

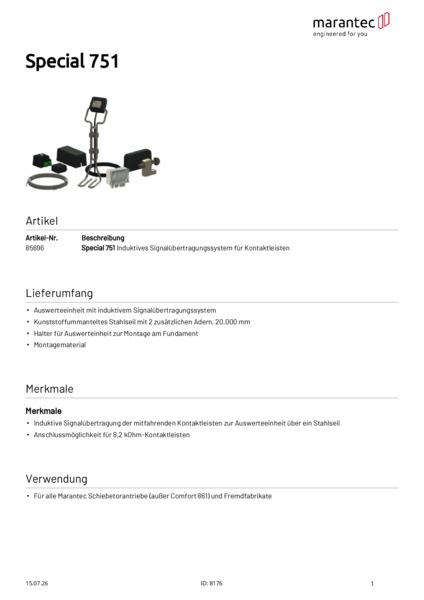

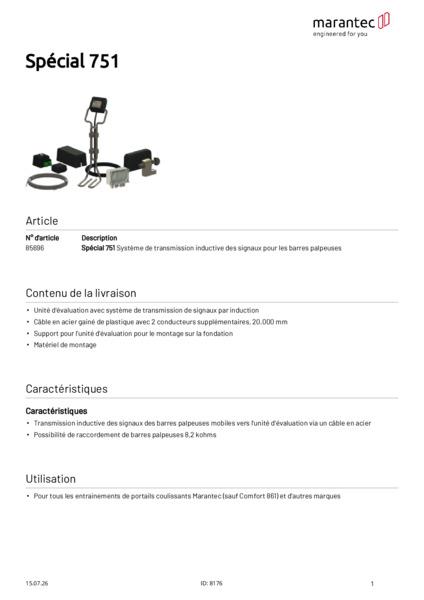

Download PDF Betriebsanleitung-ELMON-inductive-74-312-DE-EN-FR-2020-10

Filetype: PDF

Language: DE, EN, FR


Published at: Oct 6, 2020 		Preview
Download PDF Betriebsanleitung-ISB-A4-DE-EN-FR-2020-10

Filetype: PDF

Language: DE, EN, FR


Published at: Oct 15, 2020 		Preview
