SR M6 - 12 Z spur gear module 6 with 12 teeth and 35 mm bore

Spur gear module 6 with 12 teeth and 35 mm bore. For SDO with 35.0 mm shaft.
SKU
166416
4062435000471
SR M6 - 12 Z spur gear module 6 with 12 teeth and 35 mm bore

Scope of delivery:

  • Spur gear
SR M6 - 12 Z
Product descriptive data
Material Steel (galvanized)
Modul 6
Number of teeth 12
Application area
Installationarea Operator system
Dimensions and weights
Dimension A [mm] 18.85
Dimension B [mm] 72
Dimension C [mm] 84
Dimension G [mm] 35
Data sheets

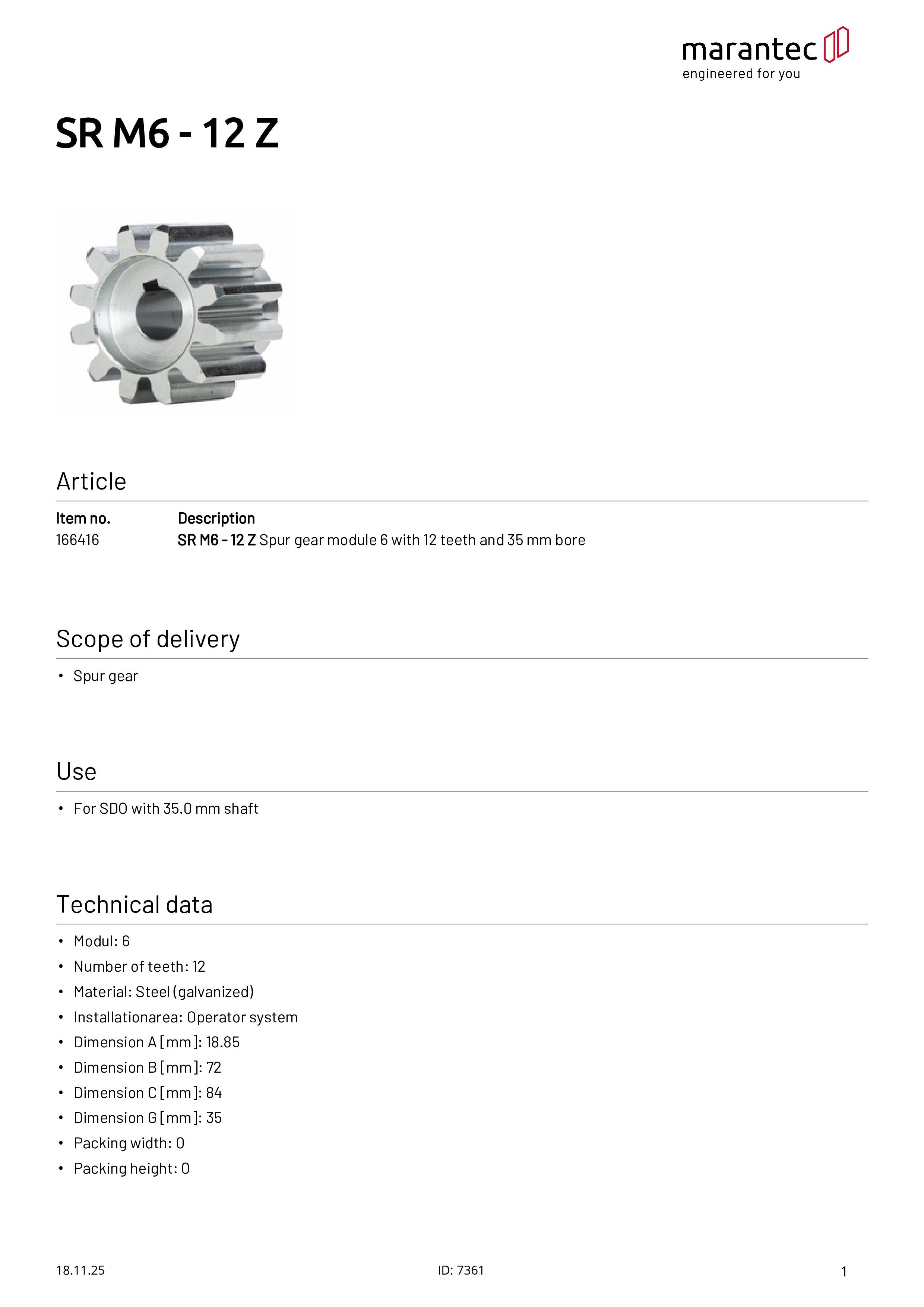

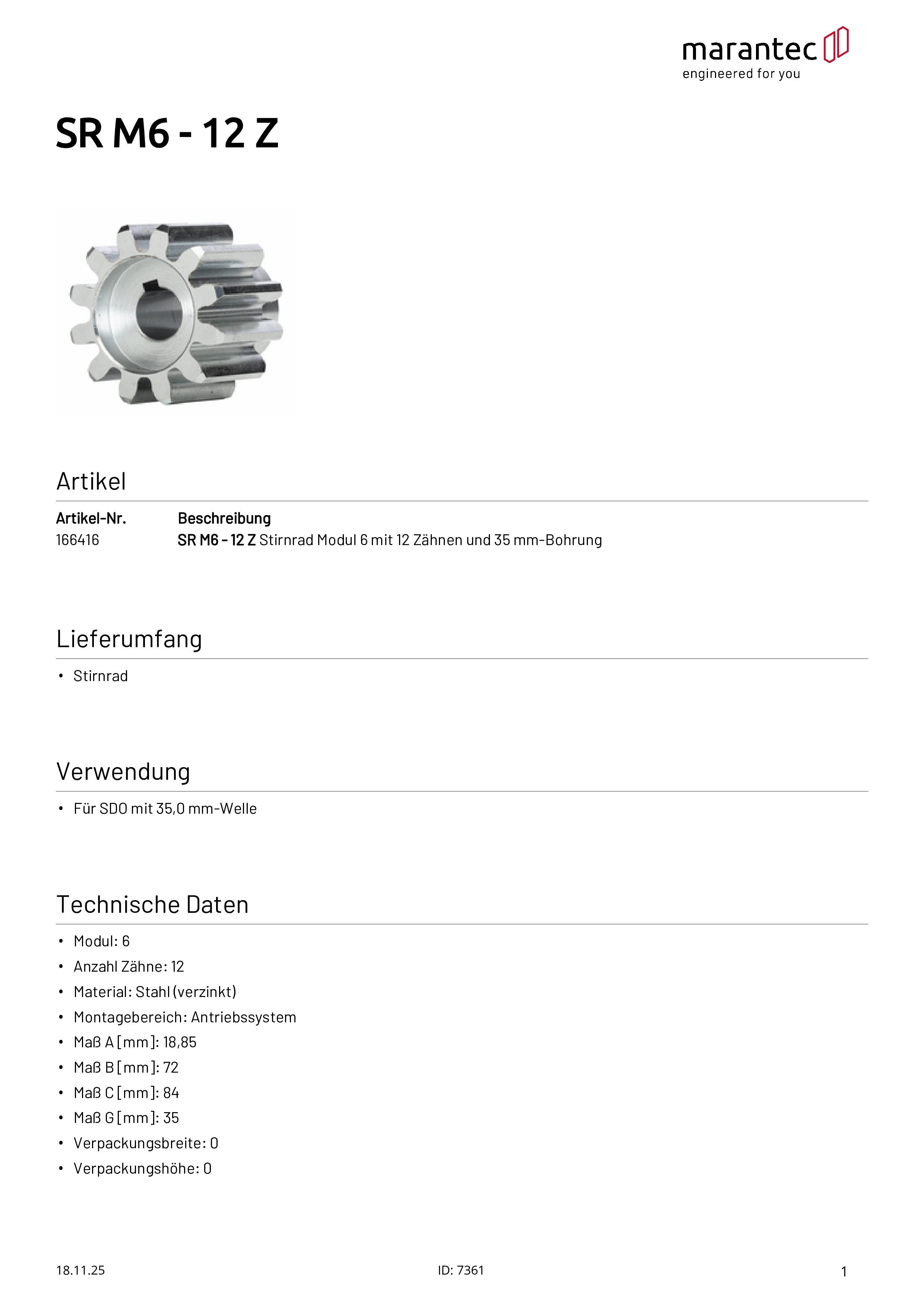

Download PDF marantec-datenblatt-166416-sr-m6---12-z-de

Filetype: PDF

 Preview
Download PDF marantec-data-sheet-166416-sr-m6---12-z-en

Filetype: PDF

 Preview
