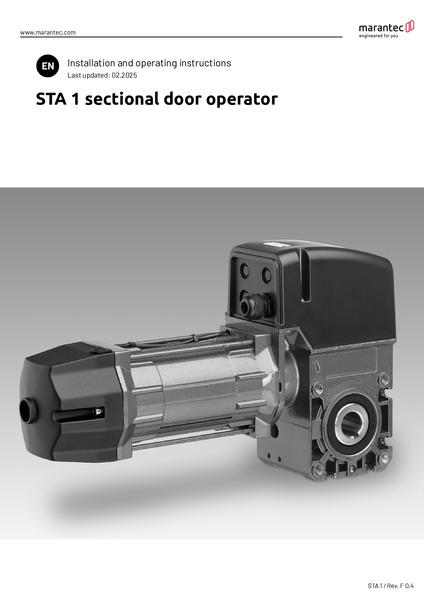

STA 1-10-24

Our STA 1 operator is the optimum solution for spring-balanced sectional doors. This is ensured by a gearbox specially developed for this application with a three-phase special motor that delivers a lot of power in the smallest space. The motor and gearbox of the STA 1 allow an extremely compact design, the housing is very narrow. The STA 1 series operators are available with a standard hollow shaft or a hollow gear shaft with multi-toothing to accommodate different shaft adapters.
SKU
P6074
Available in many variants
STA 1-10-24

Features:

  • 2 versions available: STA external control, STAC integrated control
  • Die-cast aluminum housing, rolled worm shaft and double worm shaft bearings
  • Emergency operation via emergency hand crank (KU), emergency hand chain (KE), emergency release (E), emergency release with spring return (E-FR) or maintenance release with emergency hand chain (E-KE)
  • Maintenance release optional
  • Easy conversion from crank to chain
  • Hollow shaft 25.4 mm as standard, special hollow shaft on request
  • Supply: 230/400 V/3~/50 Hz
  • Thermal protection in the motor winding
  • For gate systems with above-average switching operations, select an operator with increased motor duty cycle (HD).
  • Pluggable connectors
  • End position setting via electronic absolute encoder (AWG) or mechanical limit switches (MEC)
  • Special designs such as other voltages and frequencies, different output speeds, higher degrees of protection and hollow shaft Ø on request
  • ATEX version available (see chapter "Operators for hazardous areas")
  • For temperature ranges below -20 °C there is suitable oil and electric heating on request
STA 1-10-24
Product descriptive data
Connection type Pluggable
Continuous sound pressure level (max.) [dB(A)] 70
End position system Absolute encoder Mechanical limit switches
Safety catch integrated No
Gearbox Rolled worm shaft Double bearing worm shaft
Emergency operation Without emergency operation Emergency hand crank (KU) Emergency hand chain (KE) Emergency release (E) Emergency release with spring return (E-FR)
Protection class IP54
Control type External
Overload protection Thermal protection 140 °C
Application area
Door area (max.) [m²] 30
Temperature (min./max.) [°C] -20/60
Performance data
Output torque [Nm] 100
Output speed [1/min] 24
Holding torque (min.) [Nm] 600
Output revolutions (max.)** 20
Cycles per hour (max.)* 20
Motor power [kW] 0.37
Electrical data
Operating voltage [V] 230 V/3~ 400 V/3~
Operating voltage type Three-phase current
Nominal frequency [Hz] 50
Control voltage [V] 24 V-DC
Rated current in star connection [A] 2.00
Rated current in delta connection [A] 3.50
On-site fuse protection (mains operation 230 V/3~) [A] 16
On-site fuse protection (mains operation 400 V/3~) [A] 16
Dimensions and weights
Weight [kg] 15
Dimension A1 [mm] 55
Dimension B - KE [mm] 104
Dimension B - KU [mm] 104
Dimension C1 [mm] 55
Dimension C - E [mm] 369
Dimension C - KE [mm] 409
Dimension C - KU [mm] 399
Shaft support [mm] 25.4
Shaft mounting (optional) [mm] 25 30 31.75 35 32 mm hexagon (HEX)
Dimension A - KE [mm] 245
Dimension A - KU [mm] 245
Maß A - E [mm] 245
Dimension A - E-FR [mm] 256
Dimension B - E [mm] 104
Dimesnion B - E-FR [mm] 116
Dimension C - E-FR [mm] 369
Marantec Marienfeld GmbH & Co. KG
Remser Brook 11
33428 Marienfeld
