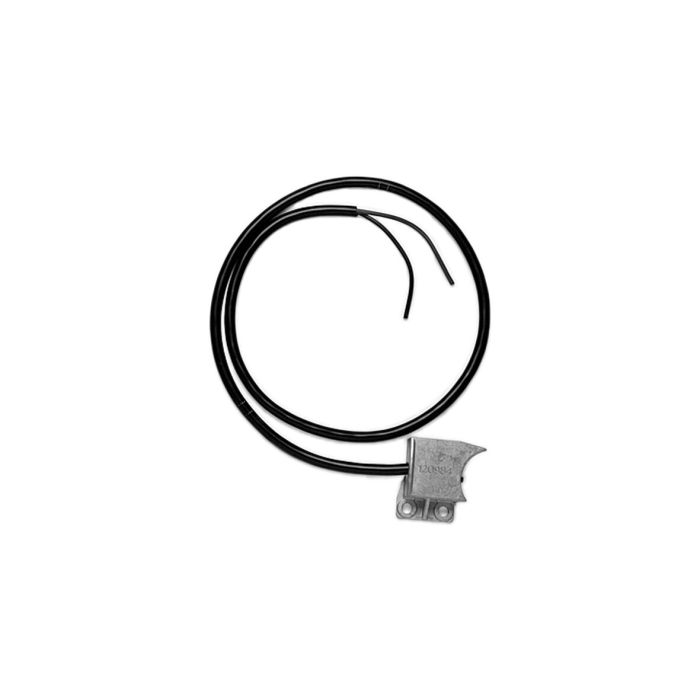

Right-hand slack rope switch for Teckentrup industrial doors, 0.5 m cable, conventional with forced opening/8.2 kOhm

For Teckentrup industrial doors, right-hand version, 0.5 m cable, conventional, NC with forced opening and 8.2 kOhm resistance. For controls with connection for 8.2 kOhm slack rope switch.
SKU
194017
Right-hand slack rope switch for Teckentrup industrial doors, 0.5 m cable, conventional with forced opening/8.2 kOhm

Scope of delivery:

  • Sleeping rope switch with 500 mm connection cable and angle bracket
Teckentrup slack rope switch
Product descriptive data
Connection type Conventional
Contact type 1 NC with positive opening
Protection class IP65
Dimensions and weights
Cable length [m] 0.5
Dimensions (WxHxD) [mm] 22x29x12
