Throughbeam photoelectric sensor 12-24 V-AC/-DC with 10 m range with cable

with 10 m range, 12-24 V-AC/-DC, 4-wire, IP65, with pre-mounted 12 m/3 m cable For controls with connection for 4-wire light barriers
SKU
99165
4062434006740
Throughbeam photoelectric sensor 12-24 V-AC/-DC with 10 m range with cable

Scope of delivery:

  • Light barrier transmitter with 12.000 mm connection cable
  • Light barrier receiver with 3,000 mm connection cable

Features:

  • Optical safety device to protect against personal injury and damage to property
Through-beam photoelectric sensor 12-24 V-AC/-DC
Product descriptive data
Connection type Conventional
Outputs

1 potential-free relay contact (CO)
Interfaces 4-wire
Protection class IP65
Application area
Temperature (min./max.) [°C] -20/60
Performance data
Range [m] 10
Range (min./max.) [m] 0/10
Electrical data
Operating voltage [V] 12-24 V-AC 12-24 V-DC
Rated current [A] 0.08
Dimensions and weights
Weight [kg] 0.93
Dimensions (WxHxD) [mm] 40x144x60
Technical data

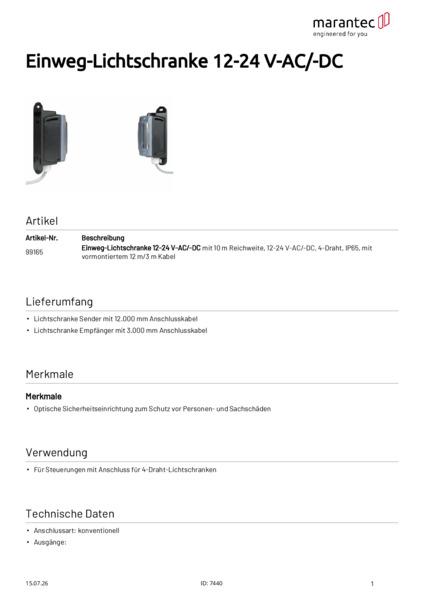

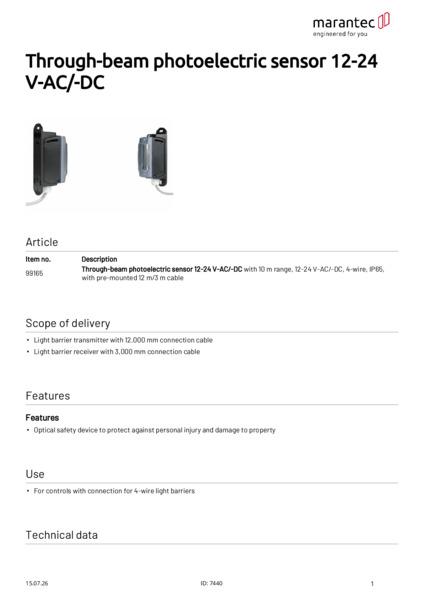

Download Document Einweg-Lichtschranke-12-24-V-AC-DC-Marantec-01.eps

Filetype: Other
Marantec Marienfeld GmbH & Co. KG
Remser Brook 11
33428 Marienfeld



For questions to the manufacturer, please use this Contact form.

Mounting bracket for throughbeam photoelectric sensor 12-24 V-AC/DC, set of 2
