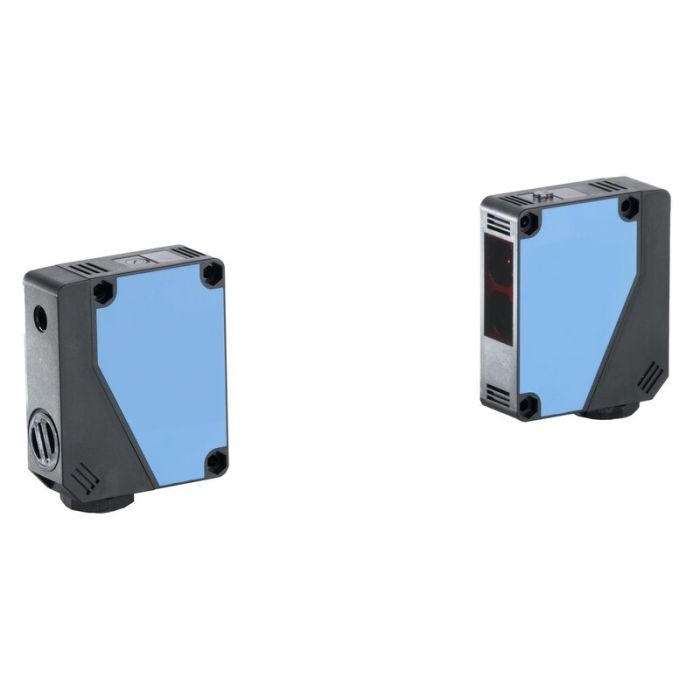

Throughbeam photoelectric sensor 24-240 V-AC/DC 10 m range with mounting brackets

with 10 m range, 24-240 V-AC/DC, 4-wire, IP66, without cable, with installation brackets For controls with connection for 4-wire light barriers
SKU
96372
4062435001508
Throughbeam photoelectric sensor 24-240 V-AC/DC 10 m range with mounting brackets

Scope of delivery:

  • Light barrier transmitter
  • Light barrier receiver
  • 2 installation brackets

Features:

  • Optical safety device to protect against personal injury and damage to property
Throughbeam photoelectric sensor 24-240 V-AC/DC
Product descriptive data
Connection type Conventional
Outputs

1 potential-free relay contact (CO)
Protection class IP66
Application area
Temperature (min./max.) [°C] -25/55
Performance data
Range [m] 50
Range (min./max.) [m] 0/50
Electrical data
Operating voltage [V] 24-240 V-AC/-DC
Power consumption [VA/W/kW] 7 VA
Contact load (max.)

240 V-AC/30 V-DC/3 A
Dimensions and weights
Weight [kg] 0.32
Dimensions (WxHxD) [mm] 23.5x74.5x63
Technical data

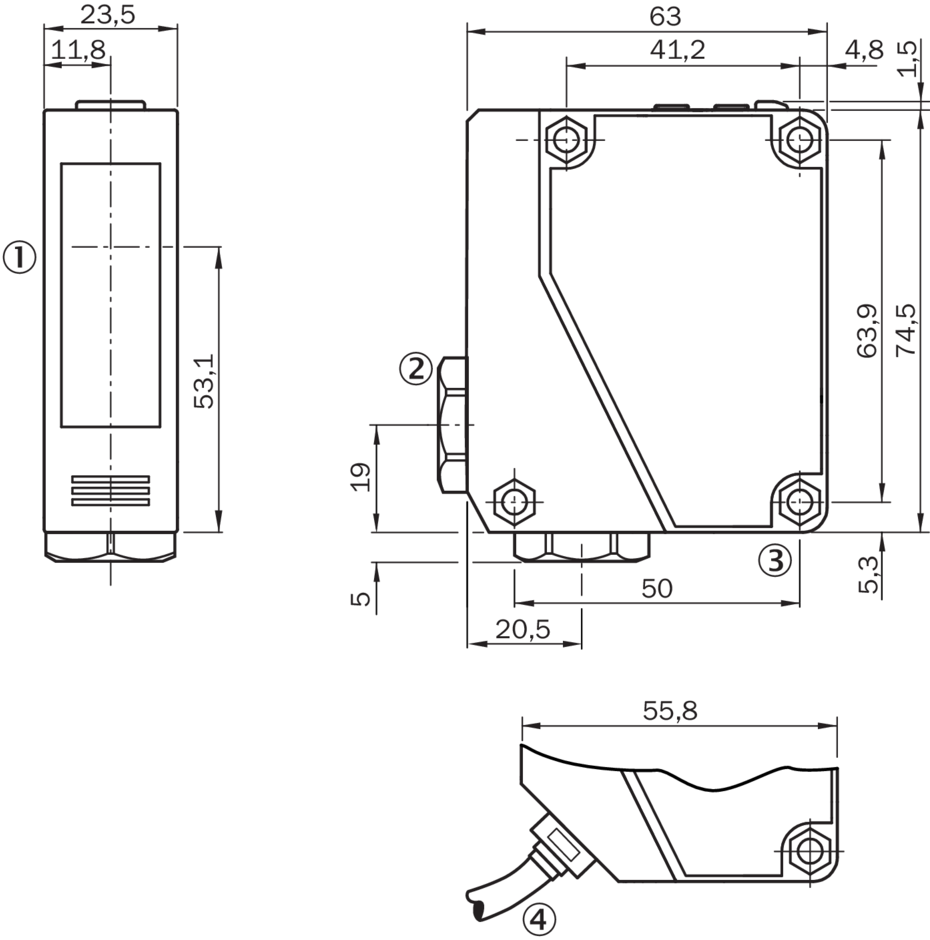

Download Document Einweg-Lichtschranke-24-230V-drawing-Marantec.png

Filetype: Image

 Preview
Marantec Marienfeld GmbH & Co. KG
Remser Brook 11
33428 Marienfeld



For questions to the manufacturer, please use this Contact form.
