1-channel transmitter for the transmission of one 868 MHz safety contact

Main image Click to view image in fullscreen

Technical data

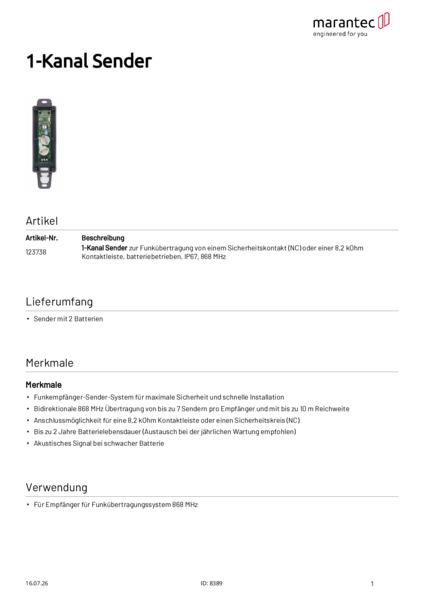

Betriebsanleitung-WIRELESSBAND-1R-DE-2021-12
Filetype: PDF

Language: DE

Published at: Dec 10, 2021

Betriebsanleitung-WIRELESSBAND-1R-EN-2022-11
Filetype: PDF

Language: EN

Published at: Nov 9, 2022

Betriebsanleitung-WIRELESSBAND-1R-ES-2022-11
Filetype: PDF

Language: ES

Published at: Nov 9, 2022

Betriebsanleitung-WIRELESSBAND-1R-FR-2022-11
Filetype: PDF

Language: FR

Published at: Nov 9, 2022

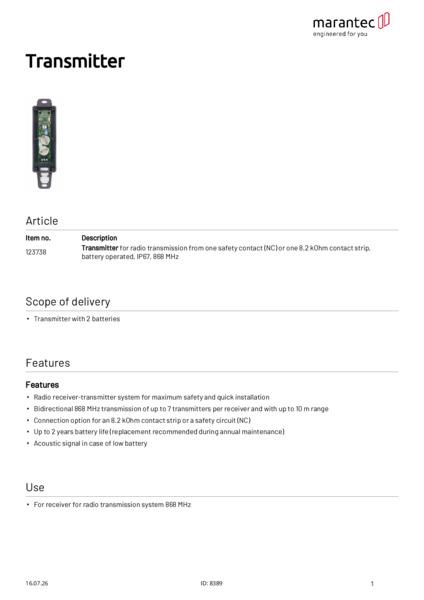

for radio transmission from one safety contact (NC) or one 8.2 kOhm contact strip, battery operated, IP67, 868 MHz. For receiver for radio transmission system 868 MHz.

SKU

123738

EAN Code

4062435001133

Quantity

PAU

Quantity

1-channel transmitter for the transmission of one 868 MHz safety contact

Scope of delivery:

Transmitter with 2 batteries

Features:

Radio receiver-transmitter system for maximum safety and quick installation
Bidirectional 868 MHz transmission of up to 7 transmitters per receiver and with up to 10 m range
Connection option for an 8.2 kOhm contact strip or a safety circuit (NC)
Up to 2 years battery life (replacement recommended during annual maintenance)
Acoustic signal in case of low battery

Transmitter

Product descriptive data

Connection type Conventional

Number of contacts 1

Inputs

1 input for a safety circuit (NC) or an 8.2 kOhm contact strip

Radio frequency 868 MHz

Channels 1

Contact type 1 NC

Interfaces 8.2 kOhm

Protection class IP67

Safety category 2

Application area

Temperature (min./max.) [°C] -20/55

Performance data

Range [m] 10

Electrical data

Battery count 2

battery type CR2032, 3 V

Rated current [A] 0.017

Dimensions and weights

Weight [kg] 0.13

Dimensions (WxHxD) [mm] 183x51x36
