WA-S 25.4/25 N stub shaft 25.4 mm with flange adapter 25 mm with groove

Spigot 25.4 mm with flange adapter 25 mm with groove. For STA 1 with hollow gear shaft 25.4 mm.
SKU
65428
EAN Code
4011805049084

Prices are only visible after login.

WA-S 25.4/25 N stub shaft 25.4 mm with flange adapter 25 mm with groove

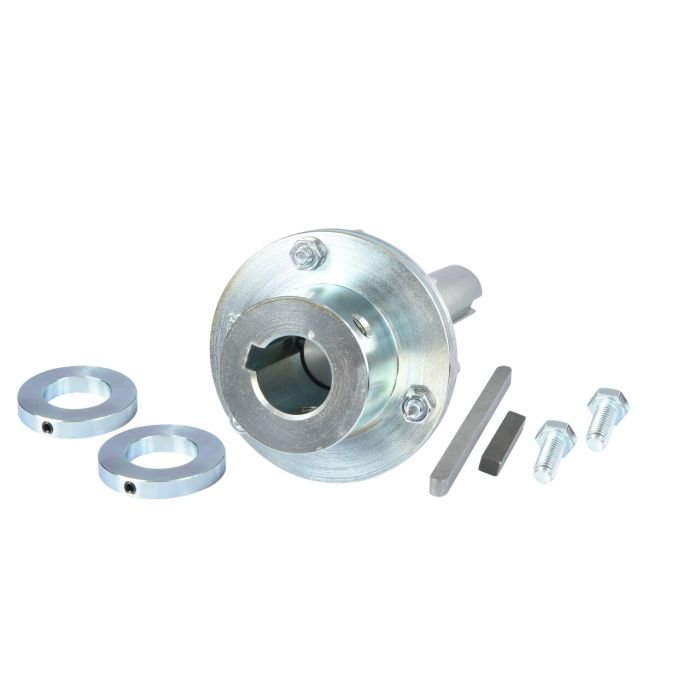

Scope of delivery:

  • Drive shaft assembly with flange adapter
  • Key for drive key way 6.35x6.35x100 mm DIN 6885 Form A
  • Key for drive key way 8x7x40 mm DIN 6885 Form B
  • 2 adjusting rings 25.4 mm
  • 2 securing bolts
WA-S 25.4/25 N
Dimensions and weights
Weight [kg] 1.7
Dimension A [mm] 25.4
Dimension B [mm] 25
Dimension C [mm] 120
Dimension D [mm] 40
Dimension E [mm] 200
Dimension F [mm] 85
