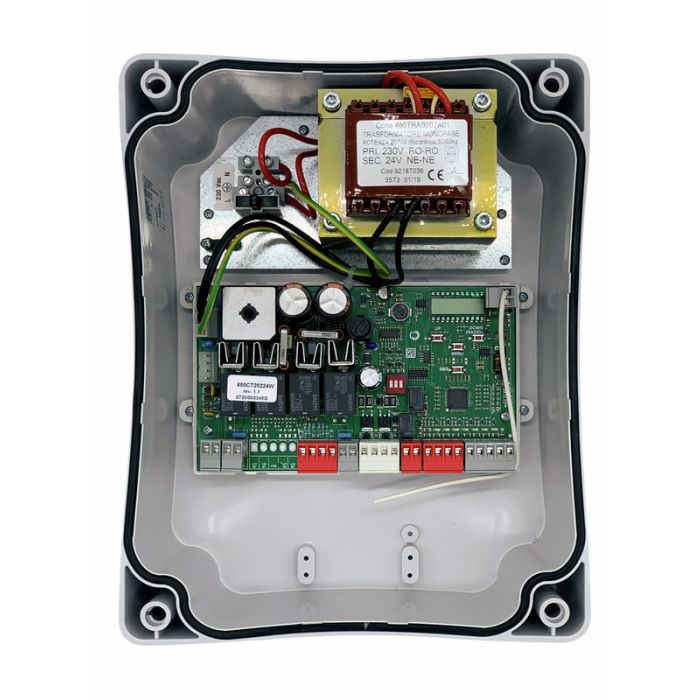

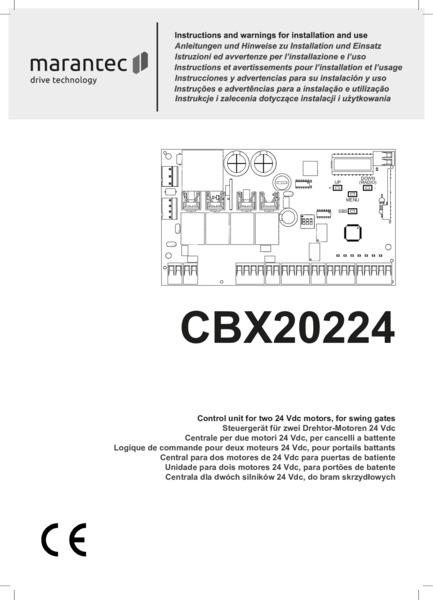

CBX20224H control unit with transformer in standard housing 868 MHz bi.linked

Control for up to 2 24 V-DC operators for swing gates, with integrated radio receiver 868 MHz bi.linked and 230 V-AC transformer in housing. For Comfort ST500, RA4224E and UN.
SKU
178461
4062434006641
178441

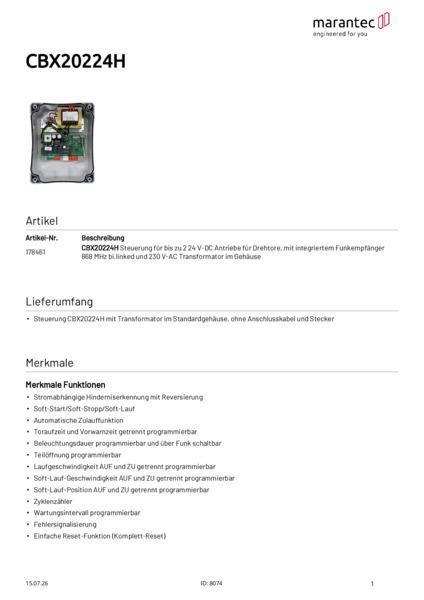

CBX20224H control unit with transformer in standard housing 868 MHz bi.linked

Scope of delivery:

  • CBX20224H control unit with transformer in standard housing, without connection cable and plug

Functions:

  • Current-dependent obstacle detection with reversal
  • Soft start/soft stop/soft run
  • Automatic feed function
  • Gate open time and prewarning time separately programmable
  • Lighting duration programmable and switchable by radio
  • Partial opening programmable
  • Running speed OPEN and CLOSE separately programmable
  • Soft run speed OPEN and CLOSE separately programmable
  • Soft run position OPEN and CLOSE separately programmable
  • Cycle counter
  • Maintenance interval programmable
  • Error signaling
  • Simple reset function (complete reset)

Operation:

  • Same programming logic for all controls - CBX102B, CBX10224 and CBX20224
  • 2 menus: simple and advanced - for easy programming, but customizable installation
  • Programming and status indication via LED display

Structure and connection:

  • Battery backup can be integrated in the housing
  • Integrated radio receiver bi.linked 868 MHz
  • Connection (conventional) for push button
  • Connection (conventional) for 4-wire photoelectric sensor OPEN and CLOSED
  • Connection (conventional) for holding circuit
  • Connection (conventional) for 8.2 kOhm contact strip
  • Connection (conventional) for 24 V-DC signal light
  • Connection (conventional) for 12 V-AC electric lock
  • Connection for battery backup
  • Output 24 V-DC, max. 250 mA
CBX20224H
Product descriptive data
Radio frequency 868 MHz
Radio technology bi.linked
Application area
Temperature (min./max.) [°C] -20/55
Electrical data
On-site supply 230 V/1~/50 Hz 230 V/1~/60 Hz
Operating voltage [V] 24 V-DC
Load capacity Power (max.) [kW] 0.28
Motor voltage [V] 24 V-DC
Control voltage [V] 24 V-DC
Dimensions and weights
Dimensions (WxHxD) [mm] 222x275x110
