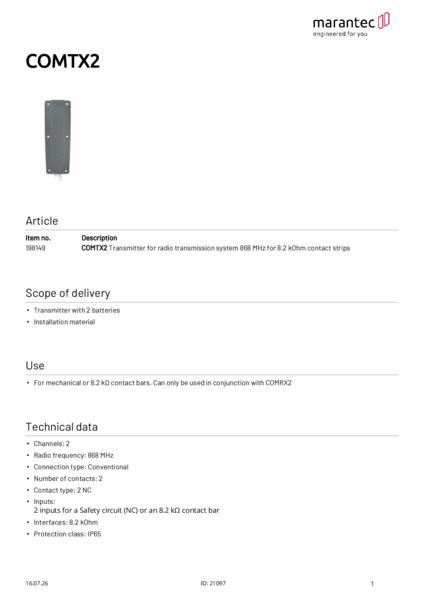

COMTX2 Transmitter for 868 MHz Radio Transmission for 8.2 kΩ contact bars

Transmitter for radio transmission system 868 MHz for 8.2 kOhm contact strips. For mechanical or 8.2 kΩ contact bars. Can only be used in conjunction with COMRX2.
SKU
198149
4062434023617
178444
COMTX2 Transmitter for 868 MHz Radio Transmission for 8.2 kΩ contact bars

Scope of delivery:

  • Transmitter with 2 batteries
  • Installation material
COMTX2
Product descriptive data
Connection type Conventional
Number of contacts 2
Inputs

2 inputs for a Safety circuit (NC) or an 8.2 kΩ contact bar
Radio frequency 868 MHz
Channels 2
Contact type 2 NC
Interfaces 8.2 kOhm
Protection class IP65
Performance data
Range [m] 0.05
Electrical data
Battery count 2
battery type AA, 1.5 V
Dimensions and weights
Dimensions (WxHxD) [mm] 55x160x25
Operating Manuals
Download PDF Betriebsanleitung-KCOM2-EN-2025-05

Filetype: PDF

Language: EN

 Preview
