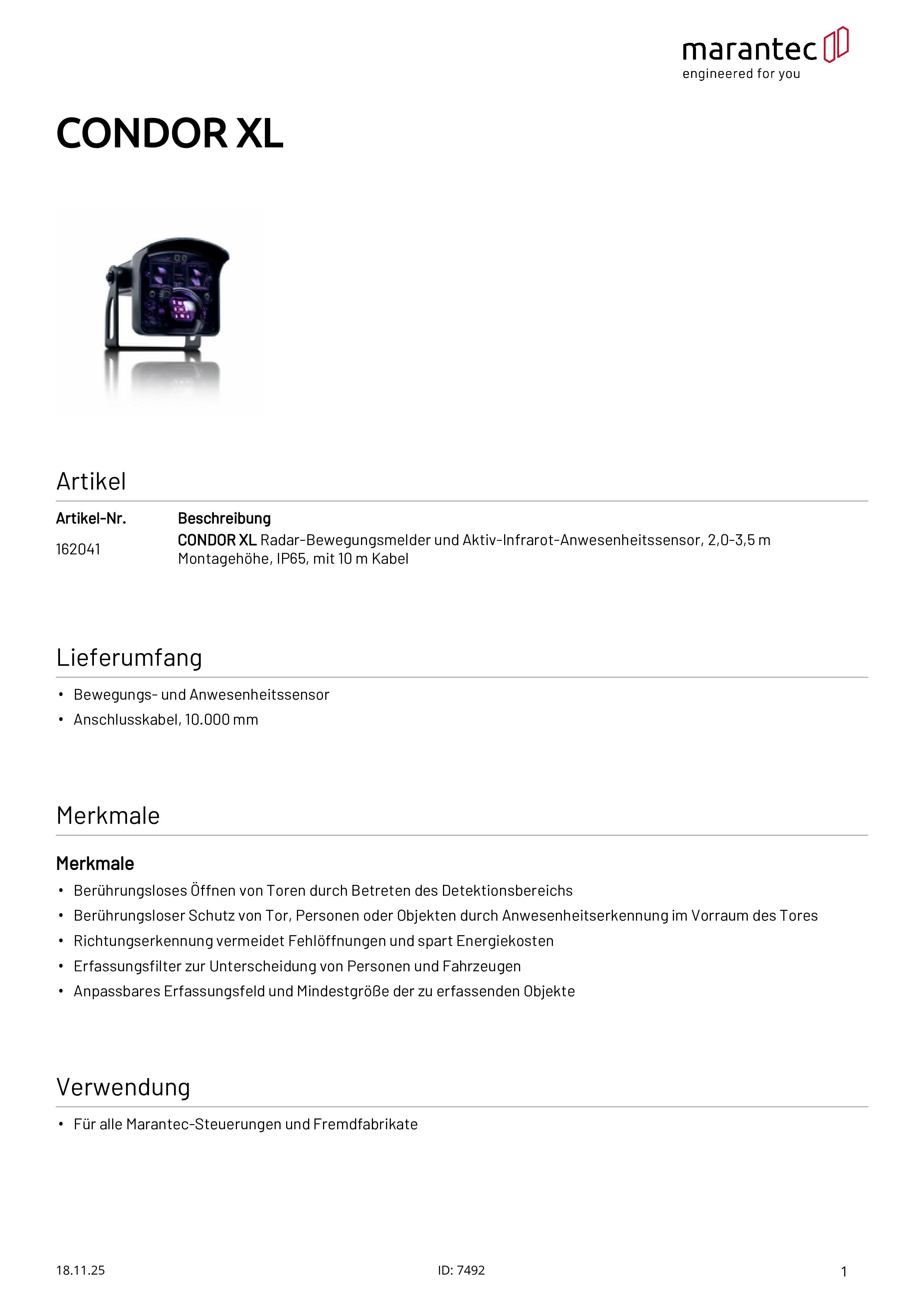

CONDOR XL radar motion detector and active infrared sensor with 10 m cable
Radar motion detector and active infrared presence sensor, 2.0-3.5 m installation height, IP65, with 10 m cable For all Marantec controls and third-party products
SKU
162041
4062434013731
Item is not available
Note
Product added to cart.
Loading...
CONDOR XL radar motion detector and active infrared sensor with 10 m cable
Scope of delivery:
- Motion and presence sensor
- Connection cable, 10,000 mm
Features:
- Non-contact opening of gates by entering the detection area
- Contactless protection of gate, persons or objects by presence detection in the vestibule of the gate
- Directional detection avoids false openings and saves energy costs
- Capture filter to distinguish between people and vehicles
- Customizable detection field and minimum size of objects to be detected
CONDOR XL
Product descriptive data
Connection type
Conventional
Outputs
2 potential-free relay contacts (CO)
Color
Black
Radio frequency
2.4 GHz
Contact type
2 CO
Protection class
IP65
Sensoren
Radar Active infrared
Wave length [nm]
875
Application area
Installation height (min./max.) [m]
2/3.5
Temperature (min./max.) [°C]
-30/60
Performance data
Detection field radar (WxL max.) [m]
4x2
Detection field active infrared (WxL max.) [mm]
4x4
Electrical data
Operating voltage [V]
12-24 V-AC 12-24 V-DC
Operating voltage type
Alternating current or direct current
Power consumption [VA/W/kW]
3.5 W
Contact load (max.)
1 A (resistive)/48 VA/30 W
Dimensions and weights
Dimensions (WxHxD) [mm]
102x96x127
