Door leaf junction box with DW switch (conventional/pluggable)

Circuit board with DW switch, hose, connections for conventional and pluggable safety elements, IP54, with cover opening for pluggable spiral cable. Can only be used in conjunction with spiral cable 5x0.25 mm² or 5x0.5 mm² with plug for door leaf junction boxes.
SKU
166843
4062434008447
Door leaf junction box with DW switch (conventional/pluggable)

Scope of delivery:

  • Door leaf junction box with circuit board with integrated DW switch, hose and opening for spiral cable
  • 4 cable entries

Features:

  • Integrated pressure wave switch
  • Connections for conventionally wired safety components

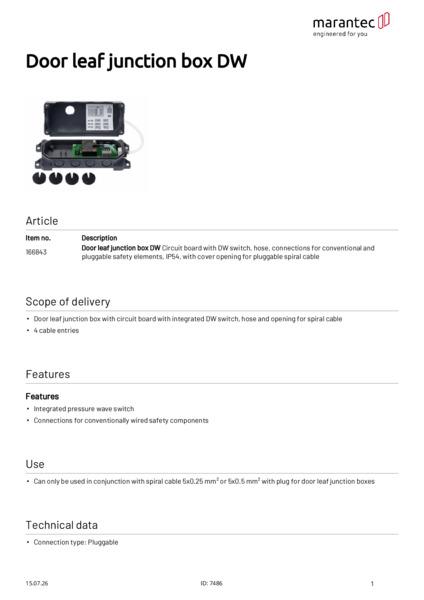

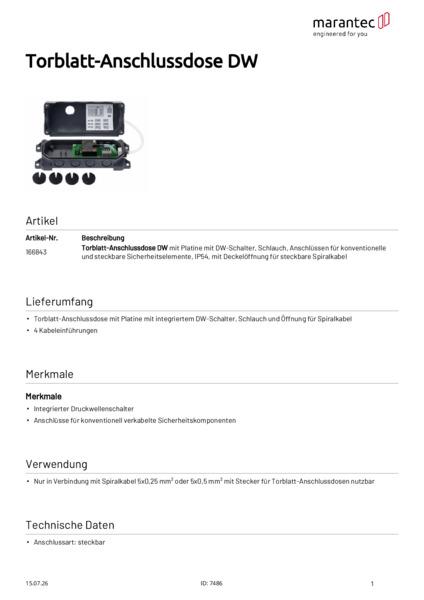

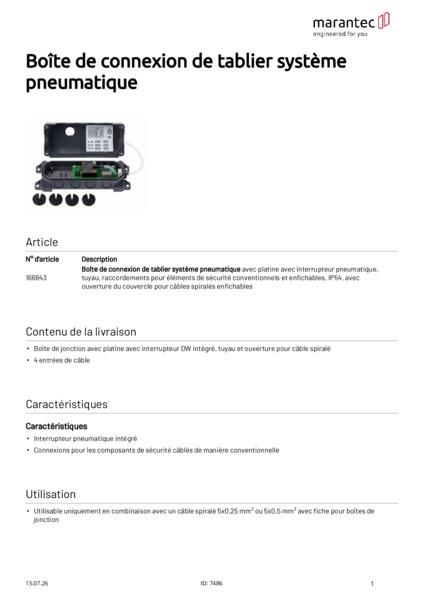

Door leaf junction box DW
Product descriptive data
Connection type Pluggable
Outputs

1 output with socket (Molex 6-pin) for spiral cable with plug (Molex 6-pin)

Inputs

2 inputs for conventionally wired slack rope switches or wicket door contacts

2 inputs with socket (Molex 2-pole) for slack rope switches with plug (Molex 2-pole)

Protection class IP54
Application area
Temperature (min./max.) [°C] -20/60
Dimensions and weights
Weight [kg] 0.1
Dimensions (WxHxD) [mm] 165x60x40
Marantec Marienfeld GmbH & Co. KG
Remser Brook 11
33428 Marienfeld
