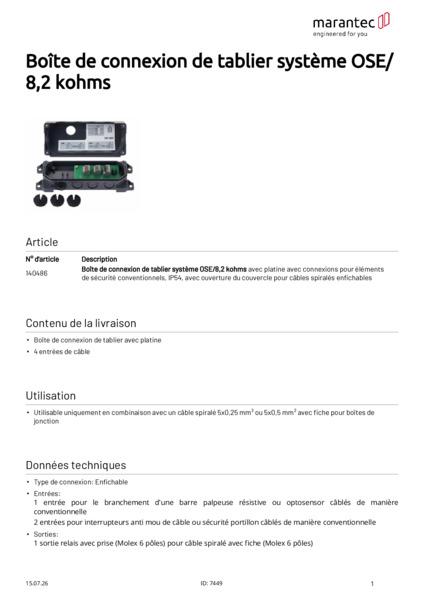

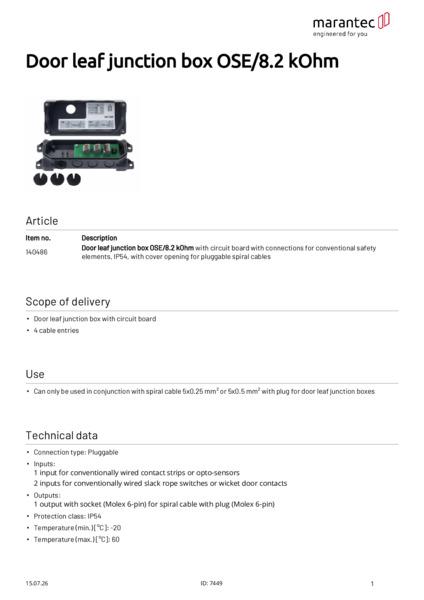

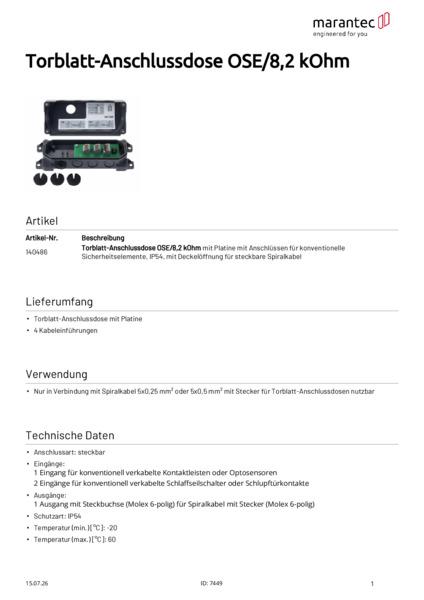

Door leaf junction box for OSE/8.2 kOhm (conventional)

with circuit board with connections for conventional safety elements, IP54, with cover opening for pluggable spiral cables. Can only be used in conjunction with spiral cable 5x0.25 mm² or 5x0.5 mm² with plug for door leaf junction boxes.
SKU
140486
4062434018538
Door leaf junction box for OSE/8.2 kOhm (conventional)

Scope of delivery:

  • Door leaf junction box with circuit board
  • 4 cable entries
Door leaf junction box OSE/8.2 kOhm
Product descriptive data
Connection type Pluggable
Outputs

1 output with socket (Molex 6-pin) for spiral cable with plug (Molex 6-pin)
Inputs

1 input for conventionally wired contact strips or opto-sensors

2 inputs for conventionally wired slack rope switches or wicket door contacts
Protection class IP54
Application area
Temperature (min./max.) [°C] -20/60
Dimensions and weights
Weight [kg] 0.1
Dimensions (WxHxD) [mm] 165x60x40
Marantec Marienfeld GmbH & Co. KG
Remser Brook 11
33428 Marienfeld



For questions to the manufacturer, please use this Contact form.
