EVOLOOP FMCW radar sensor for parking barriers with a range of 7 m and a 3 m cable

FMCW motion sensor and presence sensor for parking barriers, EN 12453 Type D, 7 m range and 140° detection angle, IP65, with 3 m cable. For all Marantec controls and third-party products.

SKU

197889

EAN Code

4062434023327

Quantity

PAU

Quantity

EVOLOOP FMCW radar sensor for parking barriers with a range of 7 m and a 3 m cable

Scope of delivery:

Motion and presence sensor
Connection cable, 3,000 mm

EVOLOOP

Product descriptive data

Connection type Conventional

Outputs

3 potential-free relay contacts (1 CO, 1 NO, 1 NC)

Inputs

1 Test input

Color Black

Radio frequency 60 GHz

Protection class IP65

Sensoren Radar (FMCW)

Application area

Installation height (min./max.) [m] 0.3/0.7

Temperature (min./max.) [°C] -25/55

Performance data

Range [m] 7

Electrical data

Operating voltage [V] 12-24 V-AC 12-30 V-DC

Operating voltage type Alternating current or direct current

Power consumption [VA/W/kW] 3 W

Contact load (max.)

Relays 1 and 2: 35 V DC/24 V AC/80 mA

Relay 3: 30 V AC/42 V DC/1 A/30 W

Dimensions and weights

Dimensions (WxHxD) [mm] 68x150x50

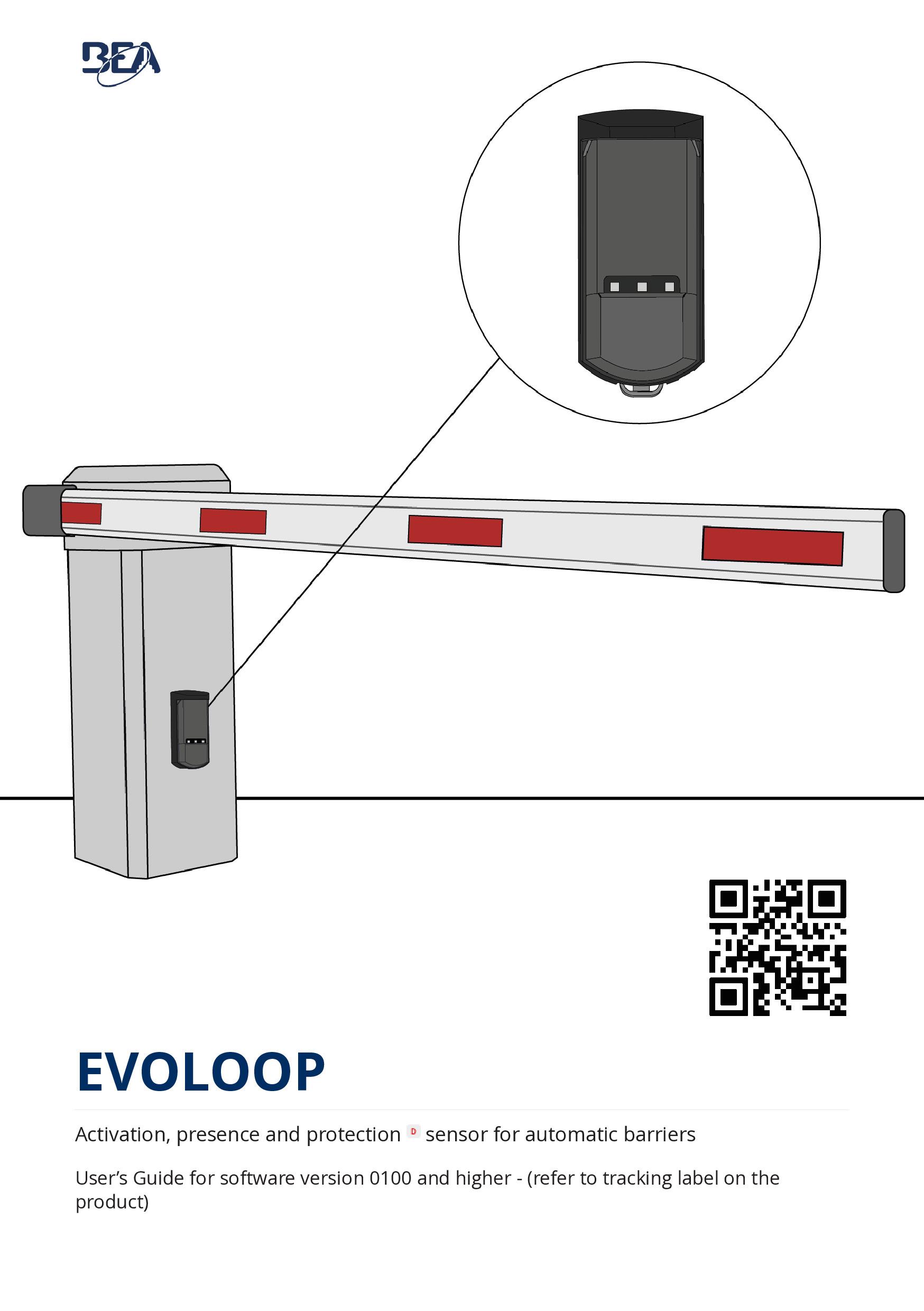

Operating Manuals
		Betriebsanleitung-EVOLOOP-DE-2025-07 Filetype: PDF Language: DE Published at: Jul 10, 2025
		Betriebsanleitung-EVOLOOP-EN-2025-07 Filetype: PDF Language: EN Published at: Jul 10, 2025
		Betriebsanleitung-EVOLOOP-ES-2025-07 Filetype: PDF Language: ES Published at: Jul 10, 2025
		Betriebsanleitung-EVOLOOP-FR-2025-07 Filetype: PDF Language: FR Published at: Jul 10, 2025
		Betriebsanleitung-EVOLOOP-IT-2025-07 Filetype: PDF Language: IT Published at: Jul 10, 2025
		Betriebsanleitung-EVOLOOP-NL-2025-07 Filetype: PDF Language: NL Published at: Jul 10, 2025

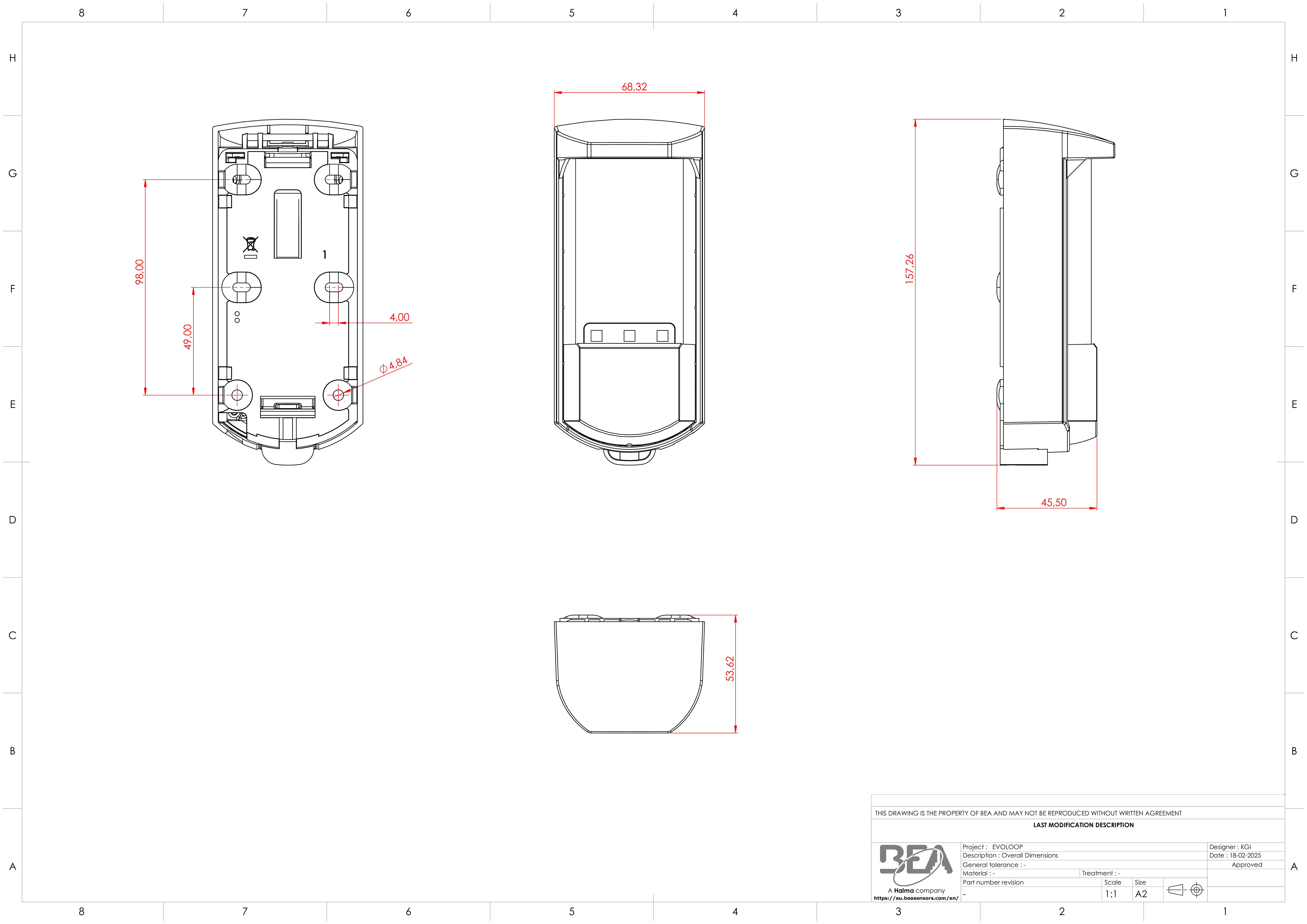

Technical Drawings
		md-evoloop.dwg Filetype: Other
		md-evoloop.dxf Filetype: Other
		md-evoloop Filetype: PDF
