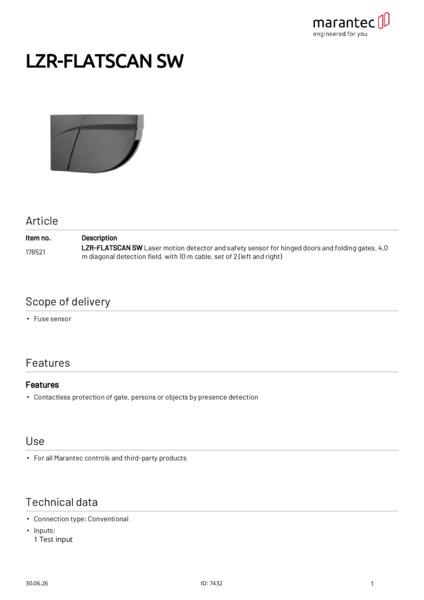

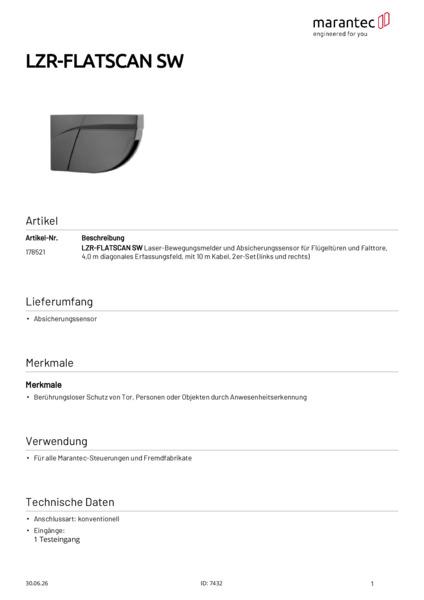

LZR-FLATSCAN SW laser scanner for swing doors and folding doors, set of 2

Laser motion detector and safety sensor for hinged doors and folding gates, 4.0 m diagonal detection field, with 10 m cable, set of 2 (left and right). For all Marantec controls and third-party products.

SKU

178521

EAN Code

4062434019825

Quantity

PAU

Quantity

LZR-FLATSCAN SW laser scanner for swing doors and folding doors, set of 2

Scope of delivery:

Fuse sensor

Features:

Contactless protection of gate, persons or objects by presence detection

LZR-FLATSCAN SW

Product descriptive data

Connection type Conventional

Outputs

2 potential-free relay contacts

Inputs

1 Test input

Color Black

Protection class IP54

Sensoren Laser

Wave length [nm] 905

Application area

Temperature (min./max.) [°C] -30/60

Performance data

Detection field laser (WxL max.) [m] 4x4

Electrical data

Operating voltage [V] 12-24 V-DC

Operating voltage type Direct current

Power consumption [VA/W/kW] 2 W

Contact load (max.)

42 V-AC/DC/0.1 A

Dimensions and weights

Dimensions (WxHxD) [mm] 142x85x33

Technical data
