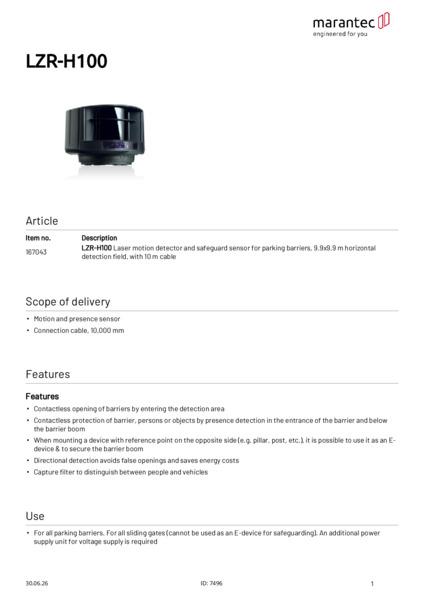

LZR-H100 laser scanner for parking barriers, 9.9x9.9 m detection field
Laser motion detector and safeguard sensor for parking barriers, 9.9x9.9 m horizontal detection field, with 10 m cable. For all parking barriers. For all sliding gates (cannot be used as an E-device for safeguarding). An additional power supply unit for voltage supply is required.
SKU
167043
4062434012338
Note
Product added to cart.
Loading...
LZR-H100 laser scanner for parking barriers, 9.9x9.9 m detection field
Scope of delivery:
- Motion and presence sensor
- Connection cable, 10,000 mm
Features:
- Contactless opening of barriers by entering the detection area
- Contactless protection of barrier, persons or objects by presence detection in the entrance of the barrier and below the barrier boom
- When mounting a device with reference point on the opposite side (e.g. pillar, post, etc.), it is possible to use it as an E-device & to secure the barrier boom
- Directional detection avoids false openings and saves energy costs
- Capture filter to distinguish between people and vehicles
LZR-H100
Product descriptive data
Connection type
Conventional
Outputs
2 potential-free relay contacts
Inputs
1 Test input
Color
Black
Protection class
IP65
Sensoren
Laser
Wave length [nm]
905
Application area
Temperature (min./max.) [°C]
-30/60
Performance data
Detection field laser (WxL max.) [m]
9.9x9.9
Electrical data
Operating voltage [V]
10-35 V-DC
Operating voltage type
Direct current
Power consumption [VA/W/kW]
5 W
Contact load (max.)
48 VA/30 W
Dimensions and weights
Dimensions (WxHxD) [mm]
125x70x93
