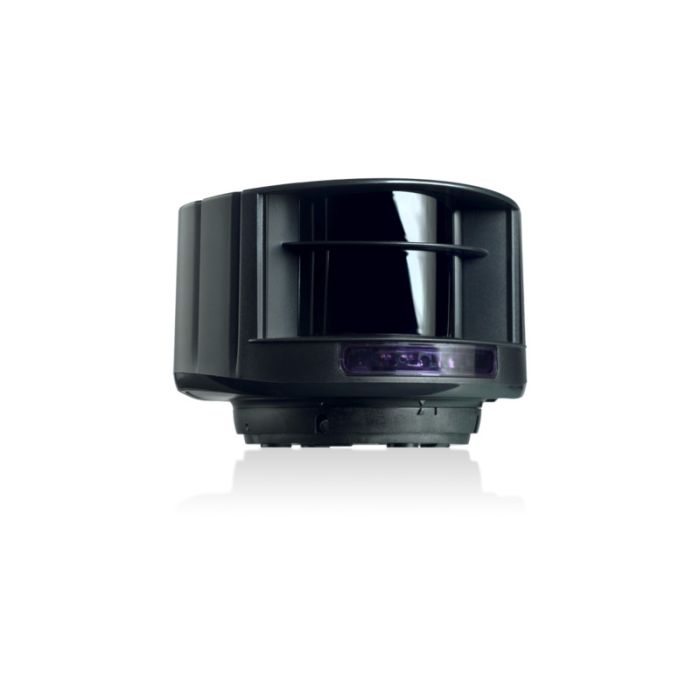

LZR-I100 laser scanner for vertical doors, 9.9x9.9 m detection field
Laser motion detector and safety sensor for vertical doors, 9,9x9,9 m vertical detection field, black, with 10 m cable For all Marantec controls and third-party products. An additional power supply unit for voltage supply is required for many controls
SKU
149225
4062434012239
Item is not available
Note
Product added to cart.
Loading...
LZR-I100 laser scanner for vertical doors, 9.9x9.9 m detection field
Scope of delivery:
- Fuse sensor
- Connection cable, 10.000 mm
Features:
- Contactless protection of gate, persons or objects by presence detection in the vestibule of the gate
- If one device is installed on the inside and one on the outside, it is possible to use it as an electrical device to secure the door
- 2 virtual pull buttons programmable for opening the gate
LZR-I100
Product descriptive data
Connection type
Conventional
Outputs
2 potential-free relay contacts
Inputs
1 Test input
Color
Black
Protection class
IP65
Sensoren
Laser
Wave length [nm]
905
Application area
Temperature (min./max.) [°C]
-30/60
Performance data
Detection field laser (WxL max.) [m]
9.9x9.9
Electrical data
Operating voltage [V]
10-35 V-DC
Operating voltage type
Direct current
Power consumption [VA/W/kW]
5 W
Contact load (max.)
48 VA/30 W
Dimensions and weights
Dimensions (WxHxD) [mm]
125x84x93
