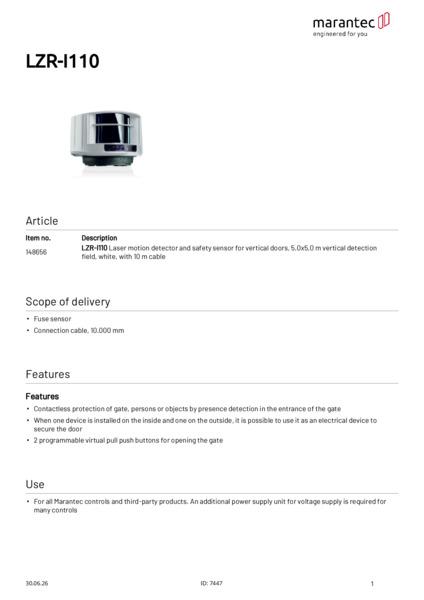

LZR-I110 Laser scanner for vertical doors, 5x5 m detection field
Laser motion detector and safety sensor for vertical doors, 5.0x5.0 m vertical detection field, white, with 10 m cable For all Marantec controls and third-party products. An additional power supply unit for voltage supply is required for many controls
SKU
148656
4062434012222
Item is not available
Note
Product added to cart.
Loading...
LZR-I110 Laser scanner for vertical doors, 5x5 m detection field
Scope of delivery:
- Fuse sensor
- Connection cable, 10.000 mm
Features:
- Contactless protection of gate, persons or objects by presence detection in the vestibule of the gate
- If one device is installed on the inside and one on the outside, it is possible to use it as an electrical device to secure the door
- 2 virtual pull buttons programmable for opening the gate
LZR-I110
Product descriptive data
Connection type
Conventional
Outputs
2 potential-free relay contacts
Inputs
1 Test input
Color
White
Protection class
IP65
Sensoren
Laser
Wave length [nm]
905
Application area
Temperature (min./max.) [°C]
-30/60
Performance data
Detection field laser (WxL max.) [m]
5x5
Electrical data
Operating voltage [V]
10-35 V-DC
Operating voltage type
Direct current
Power consumption [VA/W/kW]
5 W
Contact load (max.)
48 VA/30 W
Dimensions and weights
Dimensions (WxHxD) [mm]
125x84x93
