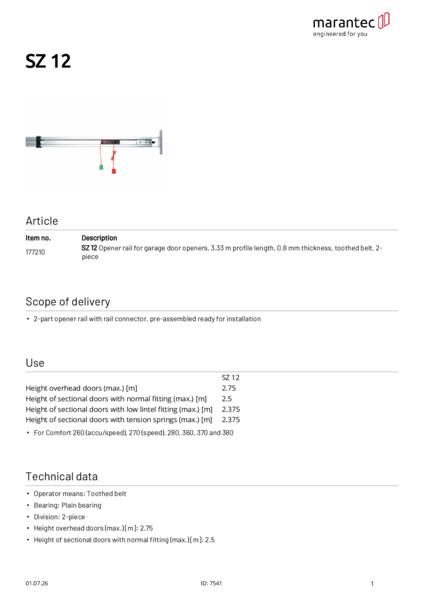

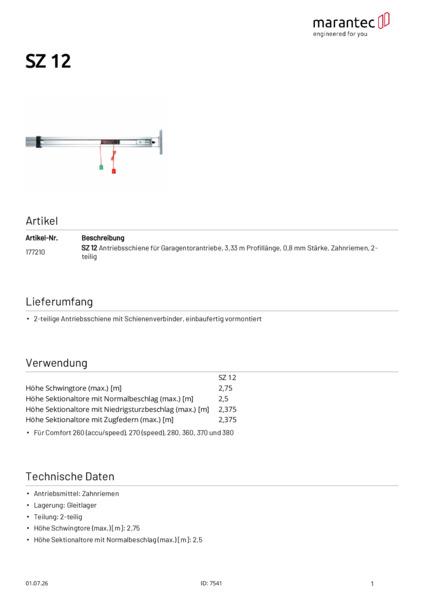

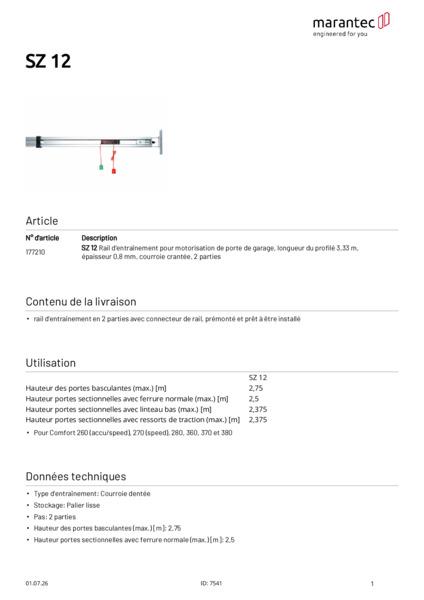

SZ 12 2-piece drive rail Profile length 3,330 mm Thickness 0.8 mm

  • Speditionsartikel
    Speditionsartikel
    Speditionsartikel
Opener rail for garage door openers, 3.33 m profile length, 0.8 mm thickness, toothed belt, 2-piece. For Comfort 260 (accu/speed), 270 (speed), 280, 360, 370 and 380.
SKU
177210
4062434012475
SZ 12 2-piece drive rail Profile length 3,330 mm Thickness 0.8 mm

Scope of delivery:

  • 2-teilige Antriebsschiene mit Schienenverbinder, einbaufertig vormontiert
SZ 12
Product descriptive data
Operator means Toothed belt
Bearing Plain bearing
Division 2-piece
Application area
Height overhead doors (max.) [m] 2.75
Height of sectional doors with normal fitting (max.) [m] 2.5
Height of sectional doors with low lintel fitting (max.) [m] 2.375
Height of sectional doors with tension springs (max.) [m] 2.375
Dimensions and weights
Weight [kg] 6
Material thickness [mm] 0.8
Movement stroke [mm] 2,710
Profile length [mm] 3,330
Marantec Marienfeld GmbH & Co. KG
Remser Brook 11
33428 Marienfeld



For questions to the manufacturer, please use this Contact form.

Suspension clamps for drive rails with special length, set of 10
Cable holder for round and flat cables on the drive rail, set of 50
Special 109 Anti-thrust device for garage doors as burglar protection (RC 2/SKG)
Cross rail connection for drive rails SZ, set of 10
Accessory bag for drive rails SZ until 03.2020
Accessory bag for Alulux Detolux doors with operator rails SZ from 04.2020
Special 112 for sectional doors, extendable to 0.43 to 0.62 m
Special 102 Curved door arm for up-and-over doors
Special 103 swing gate fitting
Special 104 Extension for gate driver, 0.24 m extension
Special 105 Door connecting element with hinge for side sectional doors
Special 106 Adjustable door connecting element for side sectional doors
Special 201 Unlocking device for up-and-over doors with lateral door lock
Special 311 Emergency release for up-and-over doors, 3.05 m Bowden cable
Special 304 emergency release for swing/sectional doors with 0.7 m Bowden cable
Special 305 Emergency release for swing/sectional doors with 0.7 m Bowden cable
Special 306 Emergency release for sectional doors with 1.5 m pull rope
Zubehörbeutel Antriebsschiene SZ Typ 3
Zahnriemen Antriebsschiene SZ 12 Typ 3
Zahnriemenverbinder Antriebsschiene Typ 3
Schlitten Antriebsschiene SZ Typ 3
