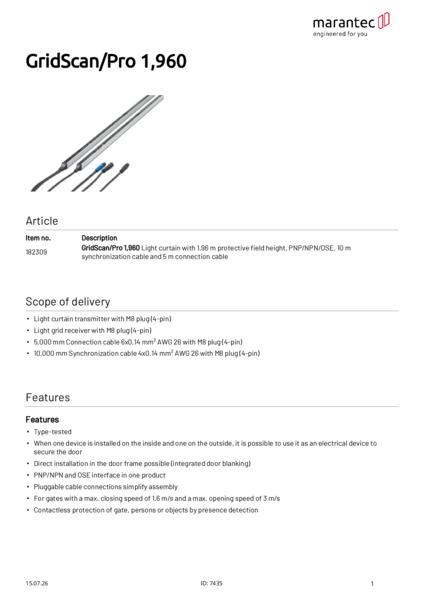

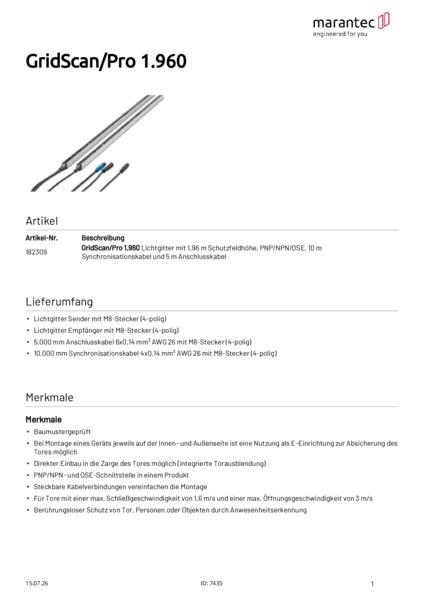

GridScan/Pro 1.960 light grid with 1.96 m protective field height, PNP/NPN/OSE

Light curtain with 1.96 m protective field height, PNP/NPN/OSE, 10 m synchronization cable and 5 m connection cable. For all Marantec controls and third-party products with OSE or PNP connection. For garage door openers and VTA, extension module EM 185 is additionally required.

SKU

182309

EAN Code

4062435000266

Quantity

PAU

Quantity

GridScan/Pro 1.960 light grid with 1.96 m protective field height, PNP/NPN/OSE

Scope of delivery:

Light curtain transmitter with M8 plug (4-pin)
Light grid receiver with M8 plug (4-pin)
5.000 mm Connection cable 6x0.14 mm² AWG 26 with M8 plug (4-pin)
10.000 mm Synchronization cable 4x0.14 mm² AWG 26 with M8 plug (4-pin)

Features:

Type-tested
If one device is installed on the inside and one on the outside, it is possible to use it as an electrical device to secure the door
Direct installation in the door frame possible (integrated door blanking)
PNP/NPN and OSE interface in one product
Pluggable cable connections simplify assembly
For gates with a max. closing speed of 1.6 m/s and a max. opening speed of 3 m/s
Contactless protection of gate, persons or objects by presence detection

GridScan/Pro 1,960

Product descriptive data

Connection type Pluggable

Number of beams 19

Interfaces OSE PNP

Protection class IP67

Safety category 2

Application area

Temperature (min./max.) [°C] -40/60

Performance data

Protective field height (max.) [m] 1.96

Gate closing speed (max.) [m/s] 1.6

Range [m] 10

Electrical data

Operating voltage [V] 10-30 V-DC

Power consumption [VA/W/kW] 1.2 W

Rated current [A] 0.05

Dimensions and weights

Dimensions (WxHxD) [mm] 12x1,900x14.5

Technical data
		Montageanleitung-GridScan-Pro-EN-2020-02 Filetype: PDF Language: EN Published at: Feb 27, 2020
		Betriebsanleitung-GridScan-Pro-Evo-DE-EN-FR-ES-IT-2021-06 Filetype: PDF Language: DE, EN, FR, ES, IT Published at: Jun 1, 2021
