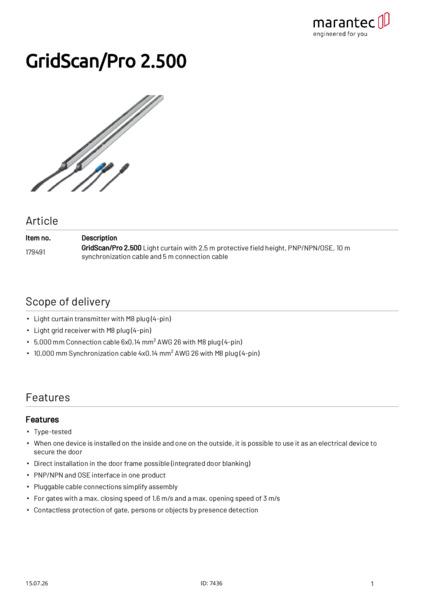

GridScan/Pro 2.500 light grid with 2.5 m protective field height, PNP/NPN/OSE
-
Speditionsartikel
Light curtain with 2.5 m protective field height, PNP/NPN/OSE, 10 m synchronization cable and 5 m connection cable. For all Marantec controls and third-party products with OSE or PNP connection. For garage door openers and VTA, extension module EM 185 is additionally required.
SKU
179491
EAN Code
4062435000273
Prices are only visible after login.
GridScan/Pro 2.500 light grid with 2.5 m protective field height, PNP/NPN/OSE
Scope of delivery:
- Light curtain transmitter with M8 plug (4-pin)
- Light grid receiver with M8 plug (4-pin)
- 5.000 mm Connection cable 6x0.14 mm² AWG 26 with M8 plug (4-pin)
- 10.000 mm Synchronization cable 4x0.14 mm² AWG 26 with M8 plug (4-pin)
Features:
- Type-tested
- When one device is installed on the inside and one on the outside, it is possible to use it as an electrical device to secure the door
- Direct installation in the door frame possible (integrated door blanking)
- PNP/NPN and OSE interface in one product
- Pluggable cable connections simplify assembly
- For gates with a max. closing speed of 1.6 m/s and a max. opening speed of 3 m/s
- Contactless protection of gate, persons or objects by presence detection
GridScan/Pro 2.500
Product descriptive data
Connection type
Pluggable
Number of beams
22
Interfaces
OSE PNP
Protection class
IP67
Safety category
2
Application area
Temperature (min./max.) [°C]
-40/60
Performance data
Protective field height (max.) [m]
2.5
Gate closing speed (max.) [m/s]
1.6
Range [m]
10
Electrical data
Operating voltage [V]
10-30 V-DC
Power consumption [VA/W/kW]
1.2 W
Rated current [A]
0.05
Dimensions and weights
Dimensions (WxHxD) [mm]
12x2,438x14.5
