KCOM2 radio transmission system transmitter COMTX2 and receiver COMRX2, 868 MHz

868 MHz radio transmission system for 8.2 kOhm contact bars, consisting of: COMTX2 transmitter and COMRX2 receiver (for up to 2 transmitters at the same time). For all operators. For mechanical or 8.2 kOhm contact strips. Attention: Not backward compatible with older COMTX transmitters and COMRX receivers.
SKU
197677
4062434023181
178443
KCOM2 radio transmission system transmitter COMTX2 and receiver COMRX2, 868 MHz

Attention: Not backward compatible with older COMTX transmitters and COMRX receivers.

Scope of delivery:

  • Receiver
  • Installation material
COMRX2
Product descriptive data
Connection type Conventional
Number of contacts 2
Outputs

2 potential-free relay contacts (NC)
Inputs

2 test inputs
Radio frequency 868 MHz
Channels 2
Contact type 2 NC
Interfaces 8.2 kOhm
Protection class IP65
Application area
Temperature (min./max.) [°C] -20/55
Performance data
Range [m] 0.05
Electrical data
Operating voltage [V] 12-24 V-AC 12-24 V-DC
Power consumption [VA/W/kW] 0.9 W
Dimensions and weights
Dimensions (WxHxD) [mm] 120x90x30
Operating Manuals

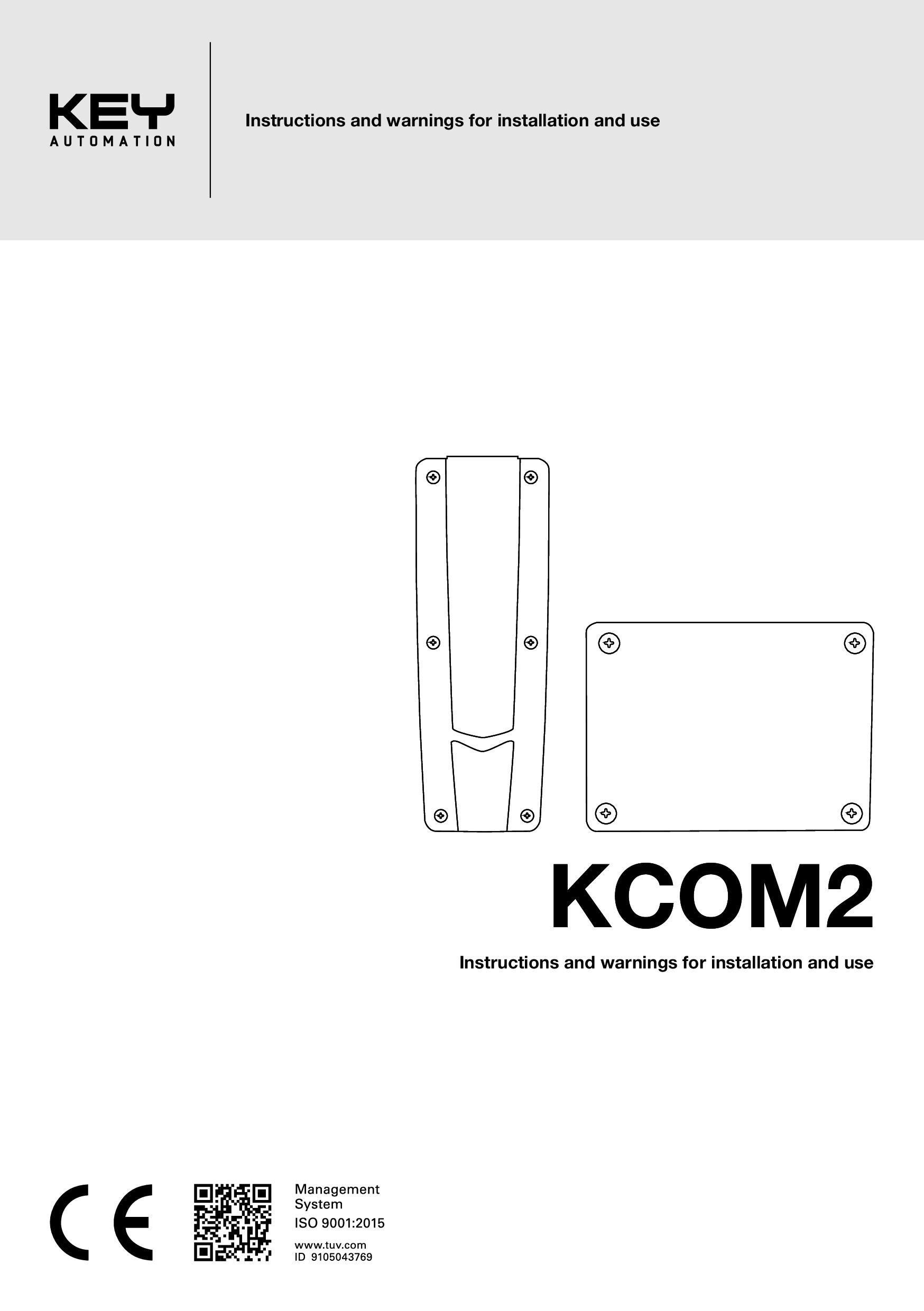

Download PDF Betriebsanleitung-KCOM2-EN-2025-05

Filetype: PDF

Language: EN

 Preview
