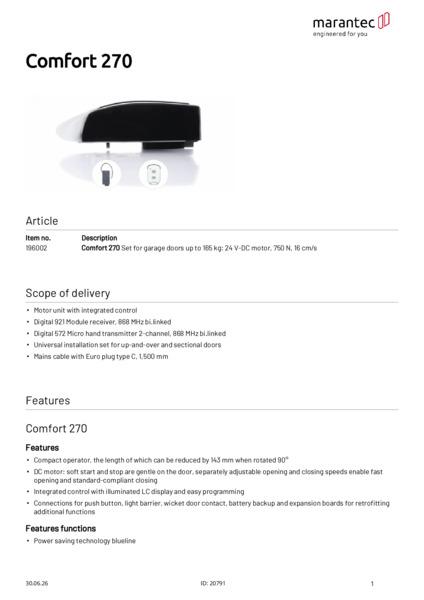

Comfort 270 garage door opener 868 MHz bi∙linked
Set for garage doors up to 165 kg: 24 V-DC motor, 750 N, 16 cm/s.
SKU
196002
4062434022818
183418,183496,183502,183525
Note
Product added to cart.
Loading...
Comfort 270 garage door opener 868 MHz bi∙linked
Scope of delivery:
- Motor unit with integrated control
- Digital 921 Module receiver, 868 MHz bi.linked
- Digital 572 Micro hand transmitter 2-channel, 868 MHz bi.linked
- Universal installation set for up-and-over and sectional doors
- Mains cable with Euro plug type C, 1,500 mm
Operator – Features:
- Compact operator, the length of which can be reduced by 143 mm when rotated 90°
- DC motor: soft start and stop are gentle on the door, separately adjustable opening and closing speeds enable fast opening and standard-compliant closing
- Integrated control with illuminated LC display and easy programming
- Connections for push button, light barrier, wicket door contact, battery backup and expansion boards for retrofitting additional functions
Control – Functions:
- Power saving technology blueline
- Soft start/soft stop/soft run
- Electronic anti-deferral device
- Blocking protection
- Runtime limit
- Reversal of direction of rotation programmable
- Backjump (relief of the closing edge)
- Automatic feed function (can only be used in conjunction with a light barrier)
- Intermediate position OPEN and CLOSED separately programmable
- Gate travel speed OPEN and CLOSE separately programmable
- Soft run position OPEN and CLOSE separately programmable
- Soft run speed OPEN and CLOSE separately programmable
- Frame function (blanking of frame light barriers)
- Programmable impulse input and output
- Cycle counter
- Maintenance interval programmable
- Error signaling with error memory
- Multi-level reset function (control, safety, radio, etc.)
Control – End position setting:
- Electronic limit stop
Control – Operation:
- Marantec EOS programming
- Programming and status message via LC display
- Programming and diagnostics possible via optional external handheld programmer
- Programming and diagnostics possible via maveo pro by smartphone app
Control – Structure and connection:
- Connection (conventional) for push button, light barrier and holding circuit
- Pluggable radio receiver
- Connection (MS-Bus) for expansion boards (boards can be integrated)
- Connection (MS bus) for handheld programmer and expansion modules
- Connection for battery backup
- Output 24 V-DC, max. 50 mA
Comfort 270
Product descriptive data
Connection type
Pluggable
Continuous sound pressure level (max.) [dB(A)]
70
Illuminant
8 LED module
Protection class
IP20
Protection class
II
Overload protection
Shutdown via current consumption
Application area
Width of double-walled sectional doors (max.) [m]
5.5
Width of single-wall sectional doors (max.) [m]
5.5
Width of tipping and canopy gates (max.) [m]
5
Width overhead doors (max.) [m]
5
Height of tilt and canopy gates (max.) [m]
2.25
Gate weight (max.) [kg]
165
Temperature (min./max.) [°C]
-20/60
Performance data
Running speed (max.) [cm/s]
16
Push and pull force (max.) [N]
750
Cycles per hour (max.)*
4
Cycles per day (max.)
28
Electrical data
Operating voltage [V]
230 V/1~
Operating voltage type
Alternating current
Power consumption [VA/W/kW]
0.25 kW
Power consumption in standby [VA/W/kW]
0.1 W
Motor voltage [V]
24 V-DC
Nominal frequency [Hz]
50/60
Rated current [A]
1.1
Control voltage [V]
24 V-DC
Time to readiness [min]
1–5
Dimensions and weights
Weight [kg]
3.5
Dimensions (WxHxD) [mm]
190x125x360
