Comfort 260 accu garage door opener 868 MHz bi∙linked

Name: Comfort 260 accu garage door opener 868 MHz bi∙linked
SKU: 184076
Availability: InStock

Set for garage doors up to 90 kg: 24 V-DC motor, 550 N, 16 cm/s.

SKU

184076

EAN Code

4062434012987

Prices are only visible after login.

Comfort 260 accu garage door opener 868 MHz bi∙linked

Scope of delivery:

Motor unit with integrated control, pre-wired, 5.000 mm
Accu 700 battery unit with charge controller

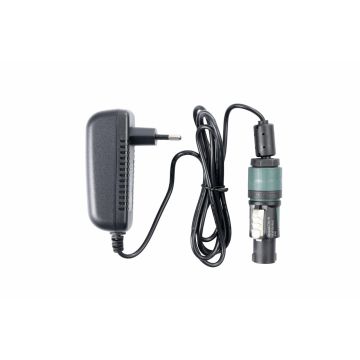

Charger with Euro plug type C
Digital 921 Module receiver, 868 MHz bi.linked
Digital 572 Micro hand transmitter 2-channel, 868 MHz bi.linked
Universal installation set for up-and-over and sectional doors

Operator – Features:

Power supply via rechargeable battery and optionally available solar panel
Compact operator, the length of which can be reduced by 143 mm when rotated 90°
DC motor: soft start and stop are gentle on the door, separately adjustable opening and closing speeds enable fast opening and standard-compliant closing
Integrated control with illuminated LC display and easy programming

Control – Functions:

Power-saving technology
Soft start/soft stop/soft run
Electronic anti-deferral device
Blocking protection
Runtime limit
Reversal of direction of rotation programmable
Backjump (relief of the closing edge)
Automatic feed function (can only be used in conjunction with a light barrier)
Intermediate position OPEN and CLOSED separately programmable
Gate travel speed OPEN and CLOSE separately programmable
Soft run position OPEN and CLOSE separately programmable
Soft run speed OPEN and CLOSE separately programmable
Frame function (blanking of frame light barriers)
Programmable impulse input and output
Cycle counter
Maintenance interval programmable
Error signaling with error memory
Multi-level reset function (control, safety, radio, etc.)

Control – End position setting:

Electronic limit stop

Control – Operation:

Marantec EOS programming
Programming and status message via LC display

Control – Structure and connection:

Connection (conventional) for push button, light barrier and holding circuit
Pluggable radio receiver
Output 24 V-DC, max. 50 mA

Comfort 260 accu

Product descriptive data

Connection type Pluggable

Continuous sound pressure level (max.) [dB(A)] 70

Illuminant 8 LED module

Protection class IP20

Protection class II

Overload protection Shutdown via current consumption

Application area

Width of double-walled sectional doors (max.) [m] 3

Width of single-wall sectional doors (max.) [m] 5

Width of tipping and canopy gates (max.) [m] 3.5

Width overhead doors (max.) [m] 3.5

Height of tilt and canopy gates (max.) [m] 2.25

Gate weight (max.) [kg] 90

Temperature (min./max.) [°C] -20/60

Performance data

Running speed (max.) [cm/s] 16

Push and pull force (max.) [N] 550

Cycles per hour (max.)* 2

Cycles per day (max.) 16

Electrical data

Operating voltage [V] 24 V-DC

Operating voltage type Direct current

Power consumption [VA/W/kW] 0.12 kW

Power consumption in standby [VA/W/kW] 0.1 W

Motor voltage [V] 24 V-DC

Control voltage [V] 24 V-DC

Dimensions and weights

Weight [kg] 3.2

Dimensions (WxHxD) [mm] 190x125x360

* The values given were determined for an even distribution of the cycles. A cycle consists of two movements (opening and closing) and has a deflection of 10 revolutions of the output shaft in each direction. At ambient temperatures between 40°C and 60°C, a reduction of the maximum cycles per hour by 50% must be taken into account.

** For vertically moving doors and roller shutters, a reduction of the specified pull force by a further 20% may be necessary. Possible reasons for this are, for example, additional seals, double-walled profiles or an unfavorable winding ratio where the door height exceeds the door width. In addition, it should be noted that the maximum torque only occurs after one to two revolutions when thick or high profiles are used.

*** Alternative limit switch ratios are available upon request.
